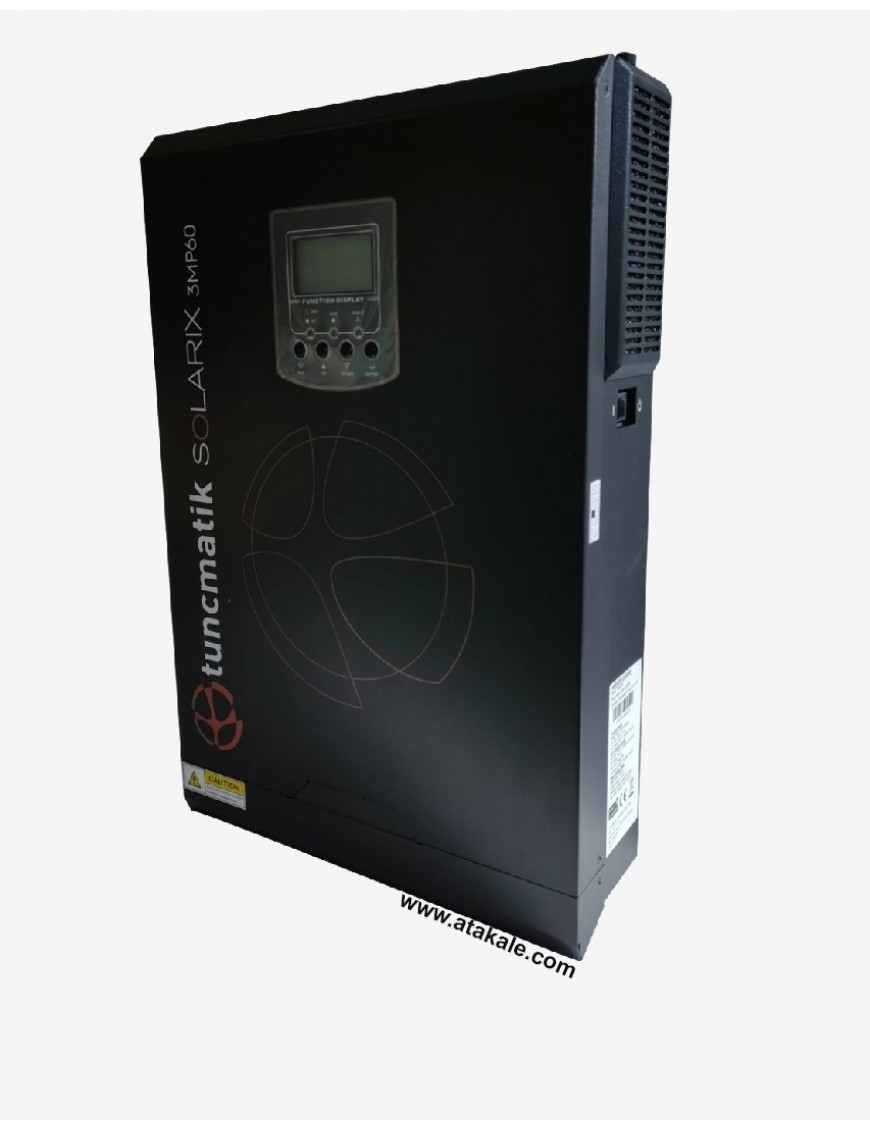

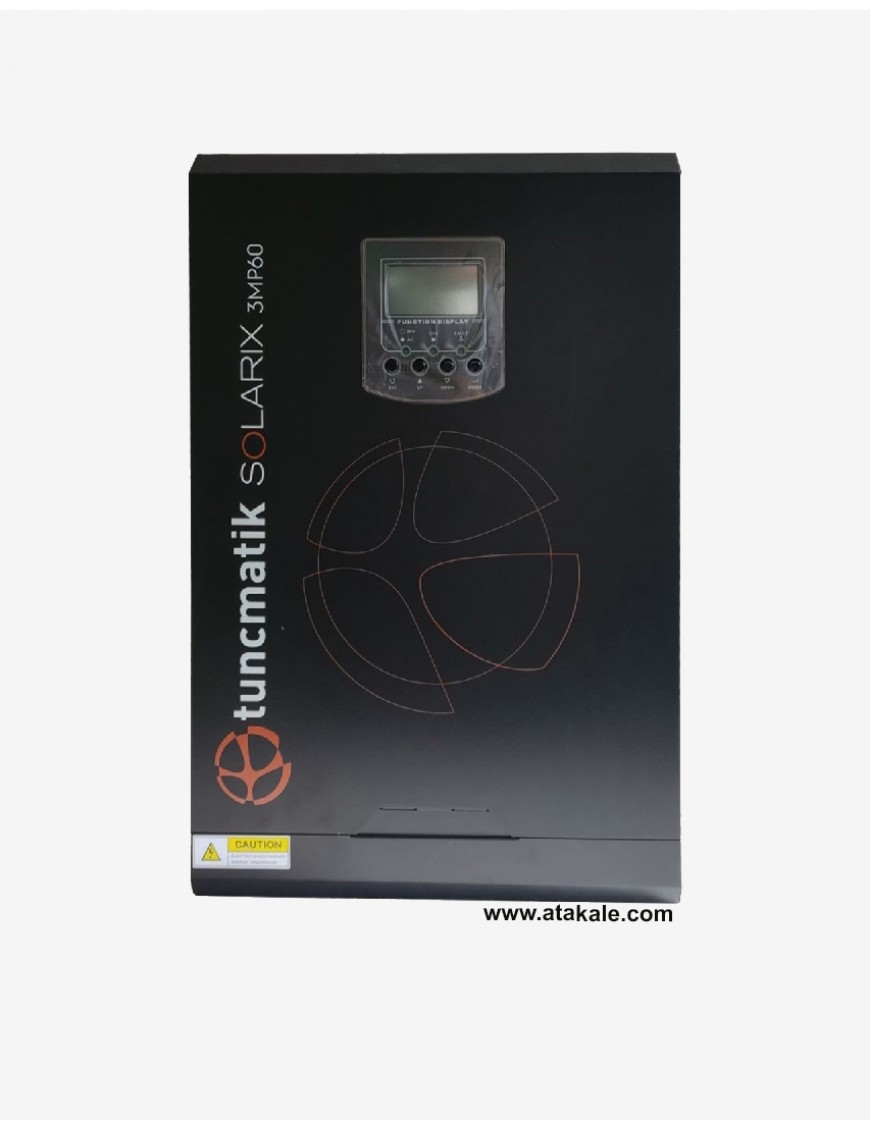

Tuncmatik 3kw MPPT 60A Inverter 3000wat Off-Grid 24Volt

Tuncmatik 3kw MPPT 60A Inverter 3000wat Off-Grid 24Volt

Brand:Tuncmatik
Product Code: TSK16012
Reward Points: 320
SKU : Tuncmatik 3KW MPPT 60A
Product available in stock : 7
  • 10,257.00₺

  • Ex Tax: 8,547.50₺
  • Price in reward points: 32000
  • 10 or more 9,750.00₺
  • 100 or more 8,970.00₺

Available Options


The products can be delivered from the factory, Ankara or Istanbul branch. If you are close to the branches of our company, you can check the stock in our unit close to you by contacting us by phone or e-mail.
Shippment Fee :You can order or order shipping cost. Those who cannot get cheap money from our company.
Dimension 500km 750km1000km+++
Box-Shippment1day2 day 3 day5 day
By Truck3 day 4 day 5 day
7 day
  • Easy to buy & return
  • 100% Secure Payments
  • 24x7 Support Available
  • Shop with our Application

Tags: Tuncmatik, 3kw MPPT, 3000w MPPT, OffGrid Inverter

Taksit Tutarı
Toplam Tutar
2 x 3.629,58 TL
7.259,15 TL
3 x 2.442,26 TL
7.326,77 TL
4 x 1.848,92 TL
7.395,67 TL
5 x 1.493,97 TL
7.469,85 TL
6 x 1.256,37 TL
7.538,23 TL
Taksit Tutarı
Toplam Tutar
2 x 3.634,86 TL
7.269,71 TL
3 x 2.447,12 TL
7.341,37 TL
4 x 1.853,62 TL
7.414,47 TL
5 x 1.498,45 TL
7.492,24 TL
6 x 1.260,85 TL
7.565,11 TL
Taksit Tutarı
Toplam Tutar
2 x 3.632,59 TL
7.265,18 TL
3 x 2.448,15 TL
7.344,45 TL
4 x 1.854,99 TL
7.419,97 TL
5 x 1.499,57 TL
7.497,86 TL
6 x 1.262,08 TL
7.572,48 TL
Taksit Tutarı
Toplam Tutar
2 x 3.629,58 TL
7.259,15 TL
3 x 2.442,26 TL
7.326,77 TL
4 x 1.848,92 TL
7.395,67 TL
5 x 1.493,97 TL
7.469,85 TL
6 x 1.256,37 TL
7.538,23 TL
Taksit Tutarı
Toplam Tutar
2 x 3.640,15 TL
7.280,29 TL
3 x 2.452,01 TL
7.356,03 TL
4 x 1.858,34 TL
7.433,37 TL
5 x 1.502,95 TL
7.514,76 TL
6 x 1.265,37 TL
7.592,19 TL
Taksit Tutarı
Toplam Tutar
2 x 3.629,95 TL
7.259,90 TL
3 x 2.442,77 TL
7.328,31 TL
4 x 1.849,50 TL
7.398,01 TL
5 x 1.494,29 TL
7.471,45 TL
6 x 1.256,78 TL
7.540,67 TL
Taksit Tutarı
Toplam Tutar
2 x 3.637,88 TL
7.275,75 TL
3 x 2.449,95 TL
7.349,85 TL
4 x 1.856,17 TL
7.424,69 TL
5 x 1.500,86 TL
7.504,29 TL
6 x 1.263,31 TL
7.579,86 TL
Taksit Tutarı
Toplam Tutar
2 x 3.632,22 TL
7.264,43 TL
3 x 2.444,82 TL
7.334,45 TL
4 x 1.851,66 TL
7.406,62 TL
5 x 1.496,37 TL
7.481,83 TL
6 x 1.258,81 TL
7.552,87 TL
Taksit Tutarı
Toplam Tutar
2 x 3.638,63 TL
7.277,26 TL
3 x 2.451,50 TL
7.354,49 TL
4 x 1.858,15 TL
7.432,58 TL
5 x 1.500,70 TL
7.503,48 TL
6 x 1.262,76 TL
7.576,58 TL

Prior to installing modules please obtain information about any requirements and necessary approvals for the site, installation and inspection from the relevant authorities.

Maximum Panel Connection Type, Number Of module

280W Solar Panel Minimum 1Series, Maximum 2 Series, Maximum 5 Module

340W Solar Panel Minimum 1 Series, Maximum 2 Series, Maximum 4 Module

400W Solar Panel Minimum 1 Series, Maximum 1 Series, Maximum 3 Module

455Wat Solar Panel Minimum 1 Series, Maximum1 Series, Maximum 3  Module

· Check applicable building codes to ensure that the construction or structure (roof, facade, support, etc.) can bear the module system load.

· CS-series solar modules have been qualified for Application Class A (equivalent to Safety Class II requirements). Modules rated under this class should be used in systems operating at voltage above 50 V or power above 240 W, where general contact access is anticipated.

· Atakale Solar Inc. modules have been certified  as Type 1 or Type 4 according to UL 1703 andClass C according to IEC 61730-2, please refer to the datasheet or the product nameplate for the detailed types.

· Consult your local authority for guidelines and requirements for building or structural fire safety

When installing modules, ensure the supporting roof has a fire resistant roof covering rated for the application. · The fire rating for this module is only valid when the product is installed as specified in the mechanical mounting instructio

The module is intended for use in general open-air climates, as defined in IEC 60721-2-1: Classification of environmental conditions Part-2-1: Environmental conditions appearing in nature - Temperature and humidity.

· Please consult the atakale Solar Inc. technical  support department for more information on the  use of modules in special climates, , such as an altitude greater than 2000 m.

Exposing modules to salt (i.e. marine environments) or sulfur (i.e. sulfur sources, volcanoes) incurs the risk of module corrosion. · Do not expose modules and their connectors to any unauthorized chemical substances (e.g. oil, lubricant, pesticide, etc.), as modules may incur damages.

· Failure to comply with these instructions will void atakale Solar Inc. limited warranty

Tunçmatik 3kw MPPT Smart Solar inverter  24V DC
Features

Benefits
Pure sine inverter PWM/MPPT  Charge
Compatible to AC mains or generator
Selectable input voltage range Appliance
Soft Start Cold Start Features

Selectable charging current based on app


Battery equalization for optimized
Configurable AC/Solar input priority via
Optional remote panel available

Power Out
PV DC Range
MPPT Charge Current
1kw-5kw
30V-100V
20A-110A
GTIP Custom Code :85044010 Manufacturer  Tuncmatik
Tuncmatik not manufacturer, Turkish OEM Brand, Original manufacturer
Tuncmatik was established in İstanbul in 1969 with the aim of making domestic production in the field of electricity and electronics in Turkey. In 1970s Tuncmatik started to manufacture the TV voltage regulators, which was a first in Turkey and this made our name well known all around the country. Later in 1980s in order to find solution to the increasing energy shortage in our country, we started to manufacture alternators and generators. Then in 1990s by the newly popular technology of personal computers entering the Turkish market we started to invest in uninterruptible power supplies and since then; as the energy solution brand of Turkey; Tuncmatik have been providing new solutions to Turkey’s developing demands day by day.
-Output Power Factor1, True sine solar offgrid inverter
-Wide DC input range, Selectable high-power charging current
-Mains/Solar input priority adjustable via LCD setting
-Selectable input voltage range for home appliances and computers
-Compatible with AC Mains or generator
-Automatic activation when AC Mains is back
-Overload and short circuit protection
-Intelligent charging circuit design for best battery performance
-Ability to run from battery (Cold Start) when there is no mains
-Optional dust suppression kit (for compatible models)
Pure sinewave output
Full compatibility with all kinds of electrical devices, the ideal solution for your critical applications. Wide input voltage range (90-280 VAC) The ability to work online in electrical household appliancesat voltages between 90-280VAC, in computer applications at voltages between 170-280VAC without switching to the battery.
Intelligent charging technology for optimal battery performance Since Solarix solar inverters charge the battery with a 3-step battery charging algorithm, they extend the battery life, reduce your operating costs, and provide savings.
High performance microprocessor
Thanks to the digital structure and high speed of the CPU-controlled control board is provides full protection by performing the protection functions of the Solar Inverter such as overload, short circuit, low-high voltage and over-temperature in a timely manner, thus ensuring that the Solar Inverter has a stable and reliable structure.
RS-232 & USB communication port
To allow for unattended Solar Inverter to shutdown/start-up and status monitoring, connect the communication cable one end to the USB/RS-232 port and the other to the communication port of your PC. With the monitoring soſtware installed, you can schedule Solar Inverter shutdown/start-up and monitor Solar Inverter status through.
PWM Solarix MP Series 1/2/3 kW solar inverters have built-in 50A PWM charger. Configure AC/Solar Charger priority Configurable AC/Solar Charger priority via LCD setting Configurable battery charging current Configurable battery charging current based on applications via LCD setting Generator Function Capability to generator power.

2th Generation Smart Solar Inverter
Axpert MKS is equipped with PWM solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, ifs worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool and battery chargers.
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. There are two different types of built-in solar chargers: PWM and MPPT solar charger. For the detailed product specification, please consult your local dealers.
New Generation Smart Inverter Features
Main Features
• Pure sine wave inverter
• Output power factor 1 (only O for 3KP/5KP Models)
• Built-in battery equalization function to extend battery life cycle
• Built-in PWM solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Battery equalization for optimized battery performance and lifecycle
• Parallel operation with up to 9 units only available for Axpert MKS 3KP/4KVA/5KVAs
• Optional remote panel available (NOT available for Axpert MKS 3PK-24 / MKS II 5K / MKS 5KP)
This is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:  Generator or Utility.  PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner

 Gel, Lead Seal ,Ion, LifePo4 Battery
It is recommended to purchase a special communication cable if you are connecting to Lithium-Ion battery banks. Please refer to Appendix II- BMS Communication Installation for details.

Battery Equalization
Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top.
Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery. Therefore, it’s recommended to
equalize battery periodically. In Equalize stage, the controller will supply power to charge battery as much as possible until battery voltage raises to battery equalization voltage. Then, constant-voltage regulation is applied to maintain battery voltage at the battery equalization voltage. The battery will remain in the Equalize stage until setting battery equalized time is arrived

Parallel Function
This inverter can be used in parallel with three different operation modes.
-Parallel operation in single phase is with up to 6 units. The supported maximum output power for 7.2KW model is 43.2KW/43.2KVA. The supported maximum output power for 6.5KW model is 39KW/39KVA.
- Maximum six units work together to support three-phase equipment. Maximum four units support one phase.
- Maximum six units work together to support split-phase equipment only available for 6.5KW model. 5 units support one phase maximum. The supported maximum output power is 39KW/39KVA and one phase can
be up to 32.5KW/32.5KVA.

Protection voltage
Triggering time of the equipment increased up to 33 volts can thus be used with more types of batteries and new technologies that appear.

FP1 (Power factor 1)
The new axpert 3000W PF1 all in one inverter increases power by 25% compared to the previous model, thus providing a real 3000W output.

Axpert pure sine wave hybrid inverter
The new all in one 24V 3000W MPPT 60A is a powerful pure sine wave inverter suitable for connecting any appliance, motor, ... up to 3000W. It allows to work at 110% several minutes and double its power for 5 seconds for inductive loads and engine start thanks to its high power of overload.

MPPT 60A regulator
MPPT regulator of 60A and up to 145 volts in open circuit. The MPPT regulator charge voltage allows to reach 27 volts to be able to use lead acid, gel or agm batteries. The all in one inverter comes with a 60A ac charger to charge if necessary. 60-amp battery charger that allows you to use the electrical network or a generator to charge batteries if necessary. Ability to charge 120 amps with network and solar panels delivering power simultaneously to the batteries.

All in One inverter with LCD where you can see all the data of the solar installation.
In this screen you will monitor the whole system in an easy and intuitive way, voltage and power of the solar panels, power consumed, the frequency and voltage of output as well as being able to program a multitude of options and priorities of operation. Very intuitive to use. Includes software for windows and linux where you can monitor the system from a PC to modify values, download history, set alarms, ...
