Solar Panel Roof Tile Hook
High Strength Reliable Design
Fixed solar panels, excellent stability
Galvanized anodized aluminum
Usable for all type pv module rail
It is easy to use install
Reduced Installation Time and Costs
Withstand different wind snow
Custimezed design for all roof type

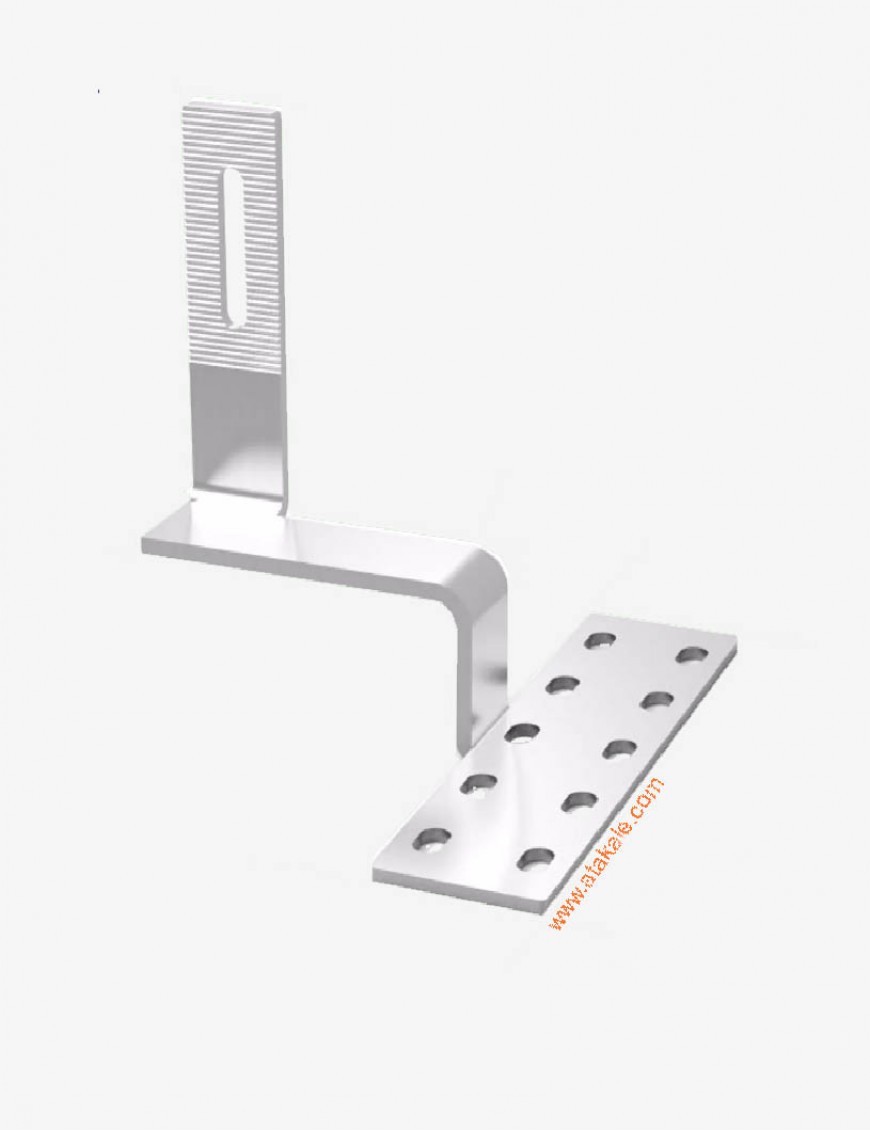

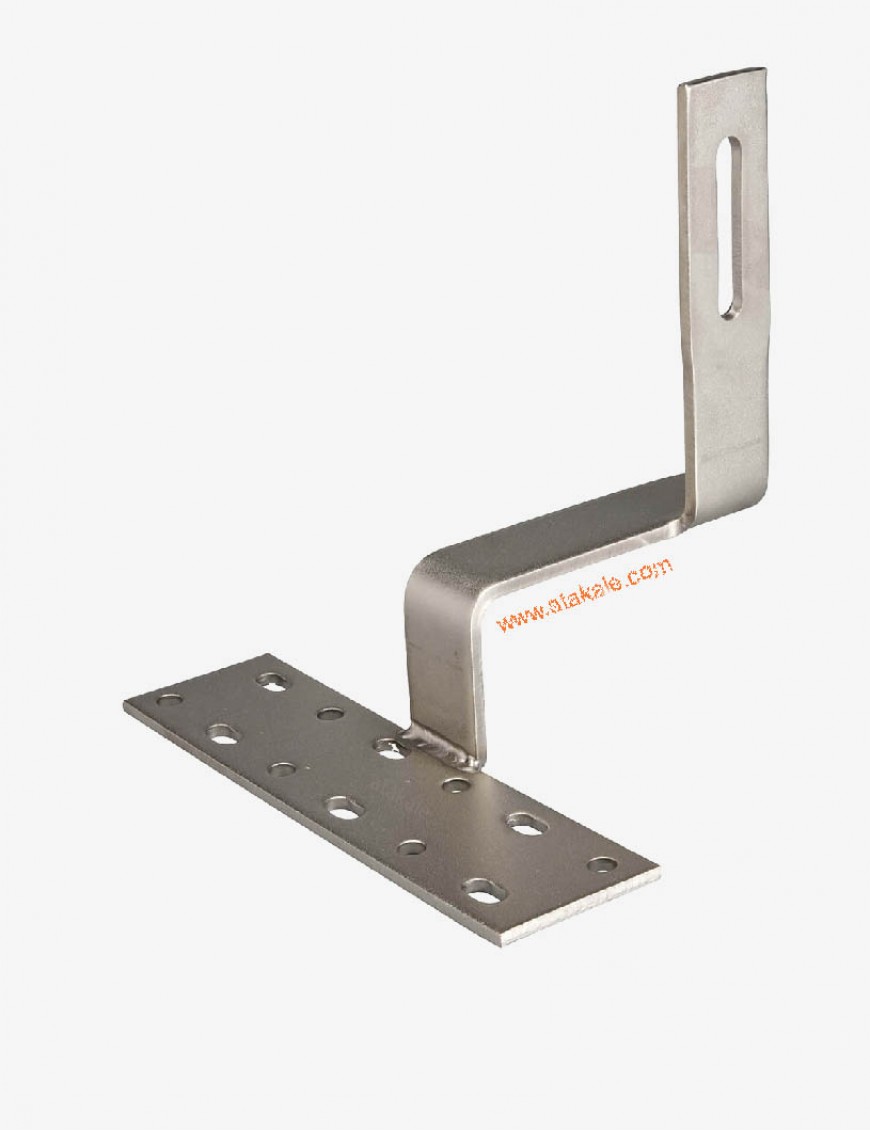

L type tile solar panel mounting apparatus is one piece high strength, and it is specially designed for mounting the rail from the edge, not from the top of the hook.
Tile Hook can be used for solar mounting system installation on sloped residential flat tile roof or curved (Spanish, S tile) tile roof. The tile hooks are compatible with most common rails and made of 304 stainless steel.
Atakale Mount not only help you determine the best solar mounting solution for solar power project,but also ensure you win the highest investment return and the most efficient of Enjoying Sunshine.
Some features of solar tile roof hook:
1. Lower cost, Incomparable value ;
2. Faster installation, Flexible attachment ;
3. More Perfect Service, Complete technical support ;
4. Certificate support, ensure the high quality.
Installation site :Pitched tile roof system.
Max Building Height:Up to 65 ft(22m),customized available.
Material:Stainless Steel 304
Warranty:12 years warranty, and 25 years life time.
Packing:20pcs for one carton, carton size:0.26*0.21*0.21m
Solar tile hook are applied to solar installation on sloped residential flat roof with or without batten, or curved tile roof without batten. The tile hooks are compatible with most common rails and are made of stainless steel. The height is adjustable to accommodate different types of tile roof installed with or without batten.
Factory directly delivery with fast delivery;
Height fixed or adjustable are available
Wider distance of bolt holes to avoid splitting rafter
5mm thick 30mm wide stainless steel tile hook arm and 4mm thick stainless steel bottom plate Not MOQ require.
The roof hook PLUS offers all the advantages of our BASIC version: twice six drill holes, infinitely variable horizontal adjustability and the diagonal hole at the top. In addition, the plates into which the hooks are inserted are available in different heights. This means that different roof batten heights can be ideally served. The base plates also have - unlike the BASIC version - two instead of one rail per side. This gives you more flexibility vertically when inserting the hooks.
The guide rail can be bent as soon as the hook is in the correct horizontal and vertical position. Even then, the diagonal hole at the upper end of the hook leaves some space for adjusting the structure. Different base profiles (universal profiles) can be mounted vertically on the roof hooks. For example, our TRI-STAND universal profile UP-L or UP-L+. With the help of the innovative SafeClick system, the TRI-STAND insert profiles can then be mounted crosswise without any further screwing
