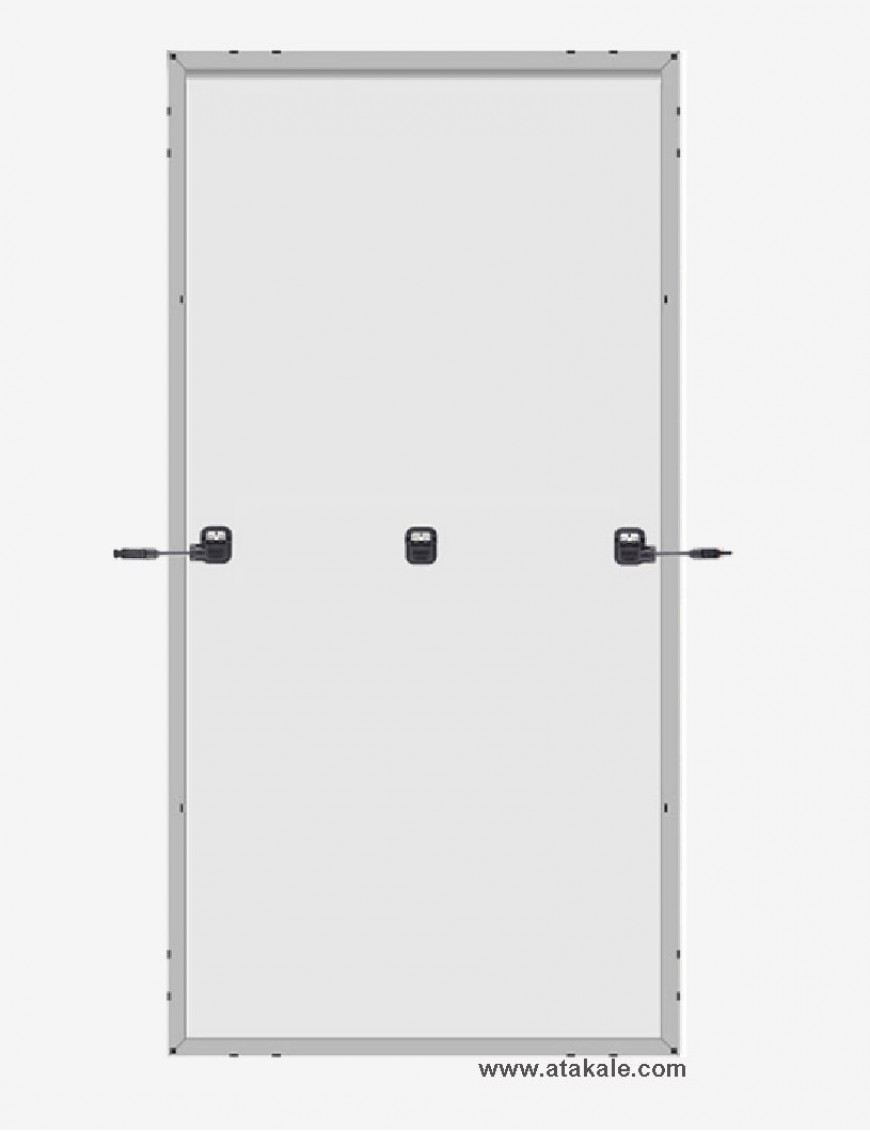

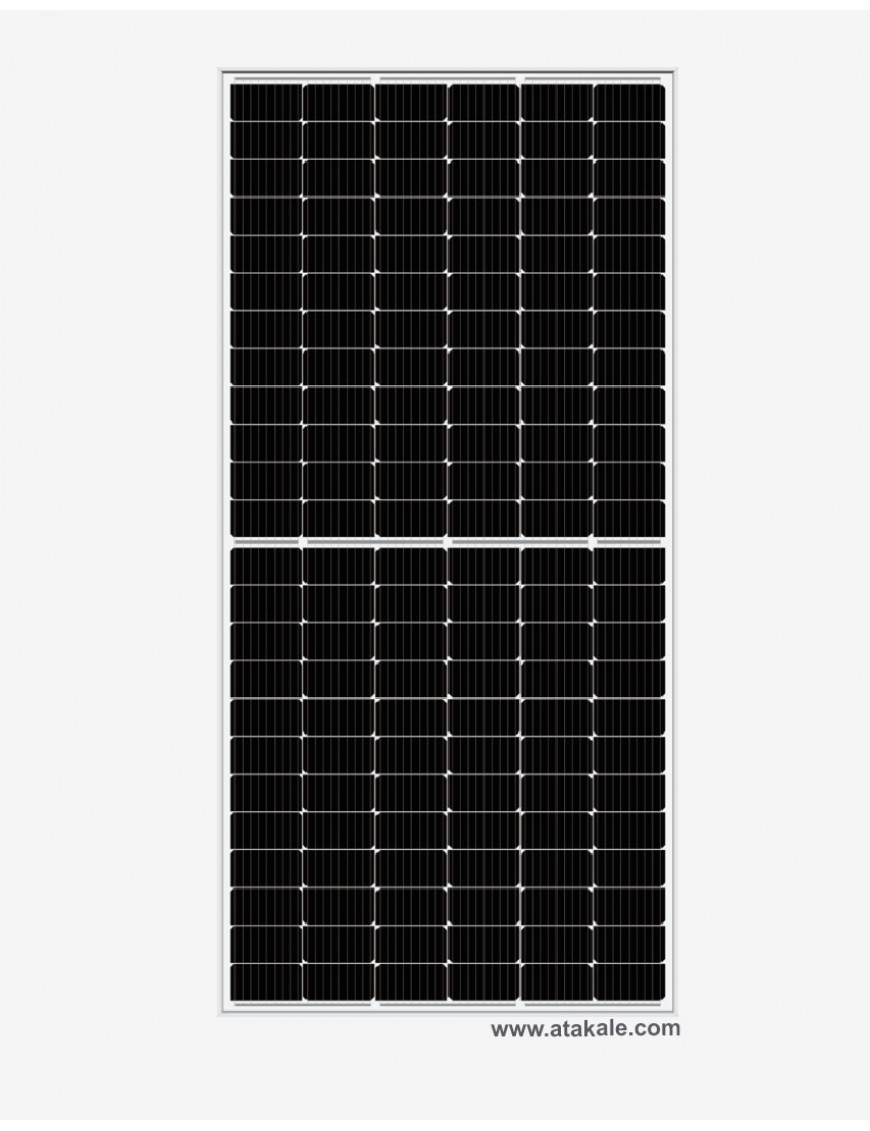

Solinved 460 watt Half Cut Monocrsytalline Solar Module 166mm Hücre 144Cell

Solinved 460 watt Half Cut Monocrsytalline Solar Module 166mm Hücre 144Cell

Brand:Solinved
Product Code: A9S144MS 460
Reward Points: 99
SKU : Solinved 460W 144Cell
Product available in stock : 1
  • 3,599.16₺

  • Ex Tax: 2,999.30₺
  • Price in reward points: 9600
  • 10 or more 3,396.96₺
  • 100 or more 2,992.56₺

Available Options


The products can be delivered from the factory, Ankara or Istanbul branch. If you are close to the branches of our company, you can check the stock in our unit close to you by contacting us by phone or e-mail.
Shippment Fee :You can order or order shipping cost. Those who cannot get cheap money from our company.
Dimension 500km 750km1000km+++
Box-Shippment1day2 day 3 day5 day
By Truck3 day 4 day 5 day
7 day
  • Easy to buy & return
  • 100% Secure Payments
  • 24x7 Support Available
  • Shop with our Application

Tags: Solinved 460 watt halfcut, Solinved 460 wat, A9S144M 460, Alka Solar

Taksit Tutarı
Toplam Tutar
3 x 1.050,79 TL
3.152,36 TL
6 x 564,24 TL
3.385,45 TL
Taksit Tutarı
Toplam Tutar
3 x 1.052,40 TL
3.157,20 TL
6 x 566,24 TL
3.397,43 TL
Taksit Tutarı
Toplam Tutar
3 x 1.053,44 TL
3.160,32 TL
6 x 567,78 TL
3.406,67 TL
Taksit Tutarı
Toplam Tutar
3 x 1.050,10 TL
3.150,30 TL
6 x 563,84 TL
3.383,06 TL
Taksit Tutarı
Toplam Tutar
3 x 1.070,35 TL
3.211,06 TL
6 x 589,90 TL
3.539,39 TL
Taksit Tutarı
Toplam Tutar
3 x 1.058,78 TL
3.176,35 TL
6 x 567,98 TL
3.407,88 TL
Taksit Tutarı
Toplam Tutar
3 x 1.065,36 TL
3.196,09 TL
6 x 578,38 TL
3.470,30 TL
Taksit Tutarı
Toplam Tutar
3 x 1.049,64 TL
3.148,92 TL
6 x 564,24 TL
3.385,45 TL
Taksit Tutarı
Toplam Tutar
3 x 1.054,25 TL
3.162,75 TL
6 x 567,11 TL
3.402,65 TL

It is the leading product in medium and small scale projects in Turkey with price, performance, locality and quality. Considering that imports are prohibited by law in Turkey, all products are domestic, and every material, including cell, is used the same by companies, it is the product with the highest price, cosmetics and accessibility.

The solar panel is A class, it is produced by the manufacturer without a box.

Even if you take precautions to prevent it from breaking during shipment, it is broken at a rate of 5% in the cargo. My advice is that it takes 3-5 days to get the product with payment at the door, but payment at the door and shipping by warehouse is the surest method.

When the panel is broken, not all shipping companies are strictly compensated. When the broken panel is legally given to the cargo by the seller, it is now the property of the buyer and the buyer is responsible for all the problems that may occur in the cargo. It is not possible to return the broken panels that will be taken without a report.

This product is sold as A- or Microcracked B. You can get this product with a minor visual defect for a 15% discount. It does not interfere with his work.

Unless you write otherwise, our company sends A Class products unless you request it.

The cargo of the panel costs about 10 USD, part of the cargo is covered by our company. If the product is requested to be returned while it is in cargo, without giving any reason, the cargo fee will be charged to the consumer. This product has been produced for use in high-cost and special works. It is a professional special-purpose product, not a device. It is not an end user product. Installation of the product requires technical knowledge.

If the outputs of the panel are short-circuited for a long time, the fuse diodes will be damaged and become inoperable.

The product is out of warranty.

There is absolutely no refund after the product has been assembled.

Solinved HalfCut Solar Module
Features

Benefits
High Efficenyc Multibus Half Cut Solar Cell
Horizantal shade performance %50
Better performance in shaded condition
Spilit junction box, Double Module

%50 Much More Reduced resistive losses


166mm silicon wafer Cell Design
Better performance in shaded conditions
Reduced temperature coefficient

Power Out
PV DC Range
MPPT Current Range
70W-625W
36V-64V
5A-17

solinved  redefined the high-efficiency module series by integrating 182mm silicon wafers with multi-busbar and half-cut cell technologies. Solinved panel combined creative technology effectively and extremely improved the module efficiency and power output.
Energy demand is increasing day by day. Only way out for this issue is renewable energy. Solar Energy is the most advanced technology for renewable energy and it expands rapidly around the World
Solinved  connected with other its company over 40 years, which has real quality mentality and experience of production in Kinkkale Industrial Zone 1.3 GW/year module production capacities. Solinved  Energy produces modules, example to world, with difference by self-developed, ultra-modem factory with lean manufacturing concept and zero defect philosophy. Makes local production, supported by legislation.
Solinved  Energy inspires confidence with photovoltaic modules which bring profitability and worldwide success, high quality, innovative engineering and technology, fast customer support, production international and traditional standards and strength financial income.
Our production and process are certified by internationally accredited institution TUV Rheinland, Kiwa Meyer and TSE.
Our goal is to support the national economy and to provide solutions for energy needs with maximum efficiency by local products.
Solinved  is a world-class manufacturer of photovoltaic (PV) panels in a ultra-modern facility with lean production, real quality understanding, production experience, and experienced technical staff in renewable energy sources. 6000 m² high-tech robotics production line and thanks to experienced technical staff;
• Provides a 25 year product warranty by providing fast recycling at first investment cost with its highly efficient panels.
• Produces high quality, TUV certified, European Standard licensed products by guiding its customers in the most accurate way.
• We guarantee our customers' expectations for our products and services with the stability and reliability around the world.
Solinved  Solar Module
-Electroluminans: Quality control of smallest micro cracks and fractures with infrared radiation.
-Solar Simulator: 1000W / m2 radiation, 25 C temperature + 5watt tolerance assurance
-Salt-Fog Test: IEC 61701 ed. Salt resistance according to 2 standards
-Snow Load Test: Snow load resistance under 5400Pa according to IEC 61215 standards
-Ammonia Corrosion Test: Corrosion resistance according to IEC 62716 standards
-Potential Induced Degradation:PID resistance according to IEC 62804 standards
-Wind Load Test: Wind load resistance according to IEC61215 standards.
-Thermal Cycle Damp Heat Test: 1000 hours damp heat and 200 thermal cycles according to IEC 61215 standards.
-Performance over 3% over cloudy days, morning and evening hours (200W / m2)
-Fill Factor Value: High fill factor value, increased power. Cell Power: High power with 9 busbar.
-Square Code System: The ease of displaying the real power measurements in the solar simulator of the panels with a tolerance of +5.
-Just-in-Time Production: Panel cannot be changed within the pane

Fully Automated Production
Solinved  production processes are executed with extreme sensitivity with a fully automated production line. All solar modules are produced handsfree and are therefore superior in performance  fficiency, longitude and durability.
Positive Power Tolerance
During production, all modules are sorted based on their power output values.Solinved  solar modules always have a positive (+) power tolerance.
Superior Resistance in Extreme
Environmental Conditions Solinved   solar modules are extremely resistant to salty water and amonia. Therefore, they can safely be used in all corosive environments such as farms or marine sites.
High Long-term Performance
The properties of all raw materials used in Solinved Photovoltaic (PV) modules have been determined in order to obtain the best performance from the modules in the long term. Solinved  works with top quality & exclusive raw material suppliers. Solinved Photovoltaic (PV) modules are offered for sale at the end of 10 years with an energy efficiency guarantee of 90% and 80% at the end of 25 years. High long-term performance is guaranteed by all tests performed during design and production.
Robust & Aesthetic Design
Solinved Photovoltaic (PV) modules are designed to serve with High Performance for at least 25 years. In addition to functional specifications in its Photovoltaic (PV) module design, aesthetics is also remarkable.The Robust frame design provides high strength against wind and snow loads. The frames continue to function without corrosion with its thick anodized layer of panel frames, even under extreme outdoor conditions.
The Photovoltaic (PV) module size is designed to be the optimum gap between the cells and the frame. The said optimum gap allow the modules to get maximum light and generate more power under outdoor conditions.
In Solinved  Photovoltaic (PV) modules, thick-section current-carrying conductor wires are used to minimize transmission losses. These conductor wires are placed on the modules in a visible way and are not covered in any way. There is a distinctly visible distance between the current-carrying wire and the module frame.solinved Photovoltaic (PV) modules never has the problem of isolation due to production by help of the said distance and the current-carrying wires that are not covered.
High Quality Products
At Solinved , high quality product understanding begins with the choice of suppliers and raw materials. We recognize the use of leading suppliers and raw materials in the sector that has proven their quality as a basic quality principle and we adopt the principle of customer orientation as one of the core values of the company's culture, even after the production and delivery of the product.

Less mismatch to get more power
Less power loss by minimizing the shading impact
Competitive low light performance
Ideal choice for utility and commercial scale projects by reduced BOS and improve ROI.
In stringent environment condition :• sand, acid, and alkali,hail stones, • 2400pa wind load and 5400pa snow load.• PID
Advantages of Solinved  olar Panel
- TUV Test Reports, Certificates, quality documents are complete and up-to-date
-It is advantageous to have paid performance insurance-Label values ​​and actual performance values ​​are exactly the same
-The main company is  company for 40 years.- Cosmetically perfect-Frame is made of quality anodized Aluminum Profiles.
-The product is silicone and the sealing work is very good-Junction Box, Panel cables and MC4 are top quality IP 68 certified.
- Even though other manufacturers use the same cell, they can generate more than 10W of tag value. He does not charge unfairly by typing the Label value of the hand correctly.
-Uses European origin Backsheet and EVa-It is one of the rare companies that accept the Warranty, even if the installation is done outside the authorized service.
-It is at the top of the list of the most preferred solar panels in Turkey
Disadvantages of Solinved  Solar Panel
- Its price is 20% higher than other manufacturers of the same power in the marketit is expensive. This causes the return on investment to be extended by 1 year.
-Has the same lifetime and efficiency as Cells used by other well-known companies. Since its performance is the same, there is little return advantage to meet the high price.
-The lead time is very long. It cannot meet the demand.Although the price is the same, the warranty periods are the same as other panels.
- Electrical properties and thermal performance are the same as other panels

Half Cut solar Module Advantage
Solar modules with half-size solar cells have the potential for becoming the new standard. The cutting of cells leads to electrical recombination losses at the cell level, which are more than compensated by reduced resistive losses as well as by current gains at the module level. At the same time, the cutting process must be optimized to avoid mechanical damage that could lead to cell breakage in the module. Module design opportunities for hot-spot protection, shading resistance and energy yield optimization are presented in this paper. Module power can be increased by 5–8%, which justifies the investment in additional equipment for cell cutting, stringing, lay-up and bussing. Half-cell technology is highly attractive for new solar module production capacity.The opportunity to generate more power for your customers and to save them money is at the forefront of any rooftop PV system sale. Half-Cell technology can take your solar installs to the next level.
The increase in Half-cell popularity over the years is due to some very distinct advantages such as:
Excellent performance in low light situations
Half-cell technology is excellent in low light situations. This is due to the design the increased number of cells feeds more power to the inverter.
Half-cell technology is more durable for long-life performance
HC technology is less susceptible to micro-cracking due to the smaller size of the solar cells. The mechanical stress on the entire panel is lessened which reduces the opportunity for micro cracks to develop. Therefore, HC panels are more durable and less prone to cracking over long periods of time.
Performs better in high-heat conditions
Half-Cell technology is proven to perform well under high heat conditions. As we know Australia never falls short of hot weather conditions. This is the reason why Half-Cell technology is increasing in popularity in the Australian solar market. Half-Cell technology is less susceptible to panel malfunctions.
Split junction boxes:
Hot spots are very common in poorly manufactured solar PV panels and can severely reduce the lifespan of a solar PV panel. Half-Cell solar PV panels have less heat below the individual cells on the panel. Hot spots are common and a negative that comes with solar PV systems that receive high levels of constant heat. In some major cases, hot spots can cause fire risks to the customer’s home. Having a split junction box reduces cell heating and the possibility for hot spots occur.
Less hot spots:
When one solar cell in a panel cell string is shaded, all the preceding unshaded cells can dump the energy they produce into the first shaded cell as heat. This creates a hot spot that can potentially damage the solar panel if it lasts for a long time. Twice as many panel cell strings means only half as much heat. The lower heat production should be less damaging to the panel so there would be an improvement in resistance to hot spot damage and increases the module longevity.
Solar Module Electricity Features
Module Power Rate Wp 460
Cell Type HalfCut M6 166mm
Number Of Cell 144
Module Efficency 20.73
MPPT Akım Değeri 10.76
Short Circuit Current 11.26
Off-Grid Proper System Voltage 48
Maximum Power Point Voltage 42.82
Open Circuit Maximum Voltage 49.80
Maxsimum Module Voltage Dc-Volt 1500
Bus Bar Number 9
Solar Module Temparature Performance
Operating Temperature -40ºC +85ºC
Isc Temparature coefficient  αIsc α %/°C  -0,04
Voc Temparature coefficient βVoc %/°C -0,311
Pmaks Temparature coeficient %/°C -0,311
Temparature coefficient βvmpp %/°C -0,237

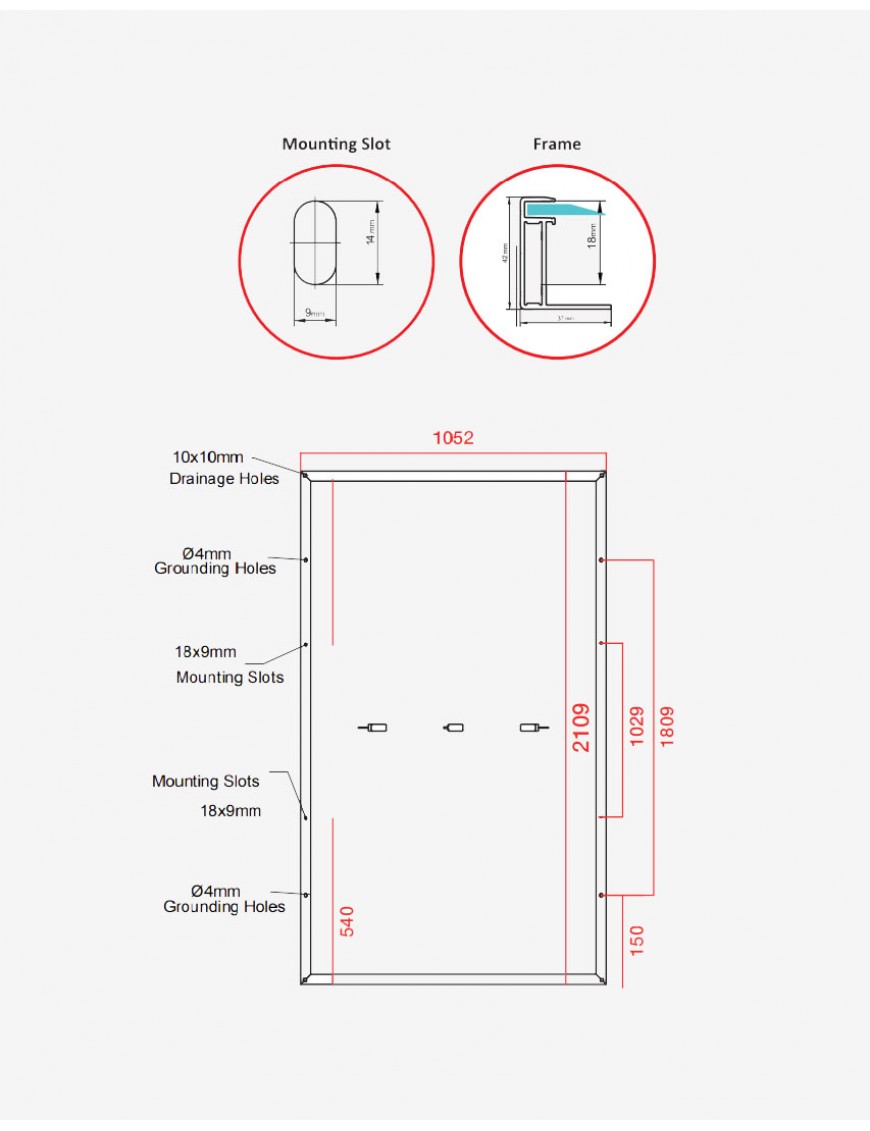

Solar Module Mechanical Specifications
Solar Module Dimension 2109x 1052 x 42 mm ( 83.03x41.41x1.65inch) 35 Modules per Pallet, 1 TIR 625
Solar module weight 25
Solar Module Frame 5400
Solar Module Quality and Certificates
Waranty Period 12
Linear power output warranty 12 years %90, 25years %83
Certificates IEC61215/IEC61730/IEC61701/IEC62716/TS61730 IEC 62804 PID FREE ISO 9001: Qualty Management System ISO 14001: Envronmental Management ISO45001: Occupatonal Health and Safety ISO 27001:2013, ISO 10002:2004 TSE,
