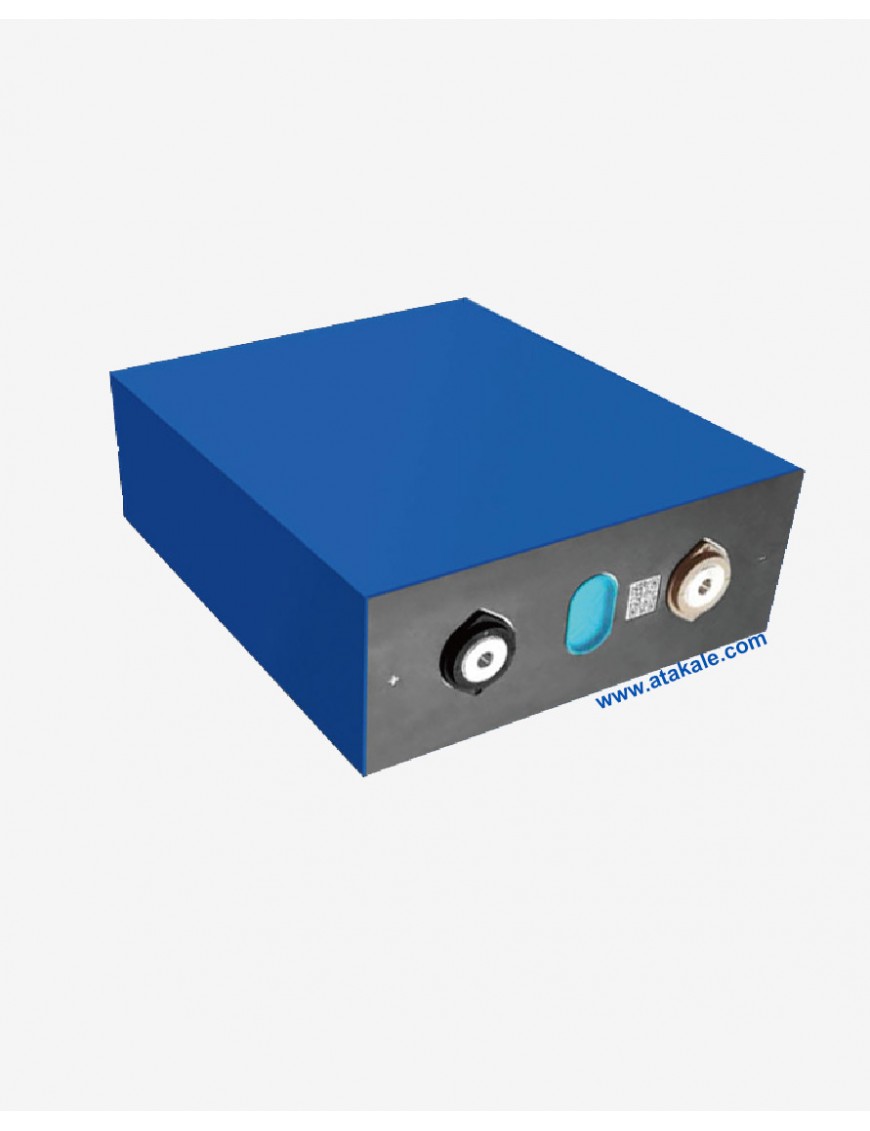

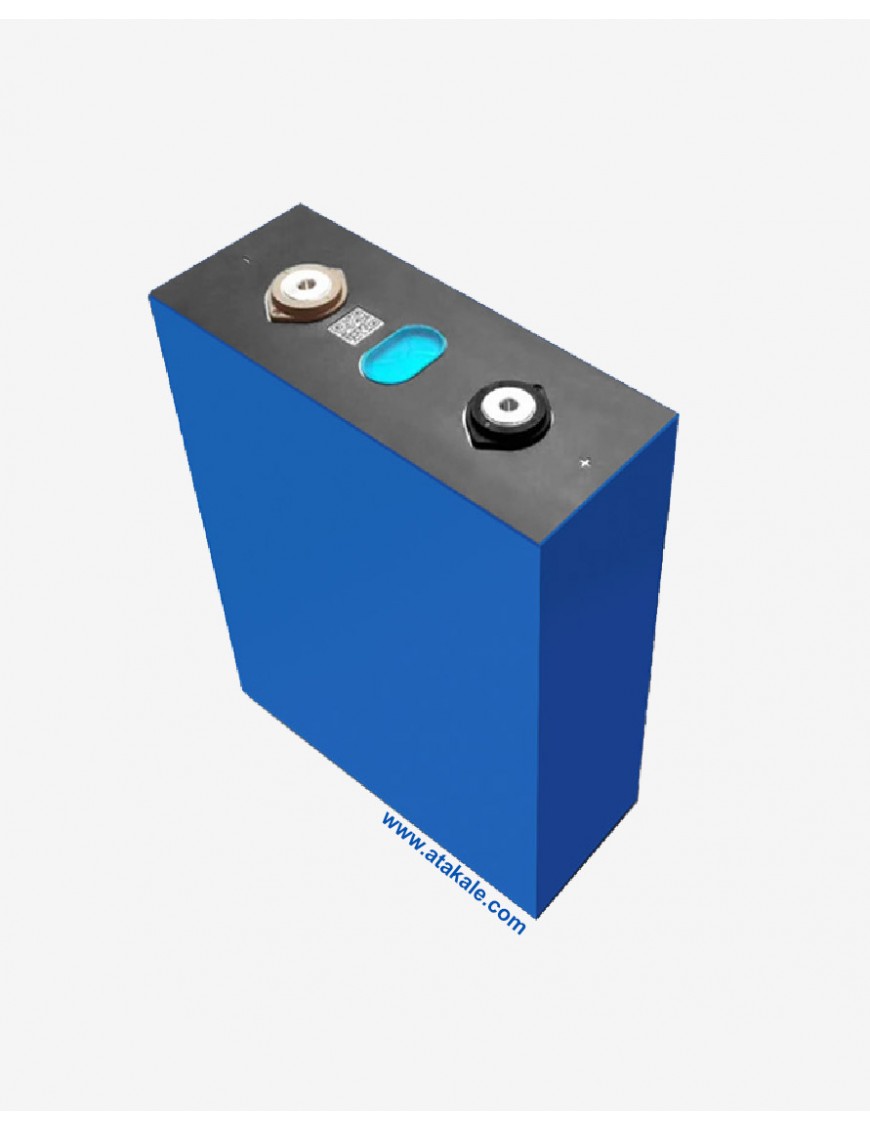

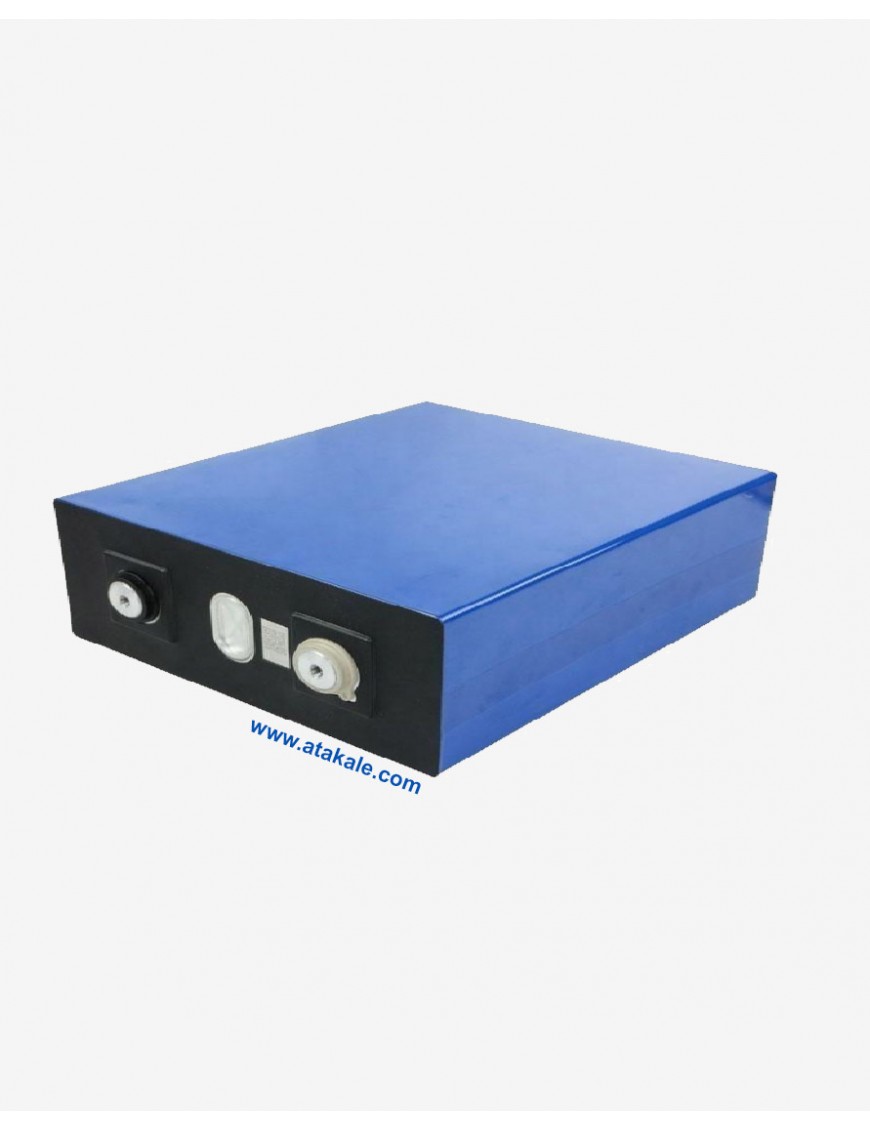

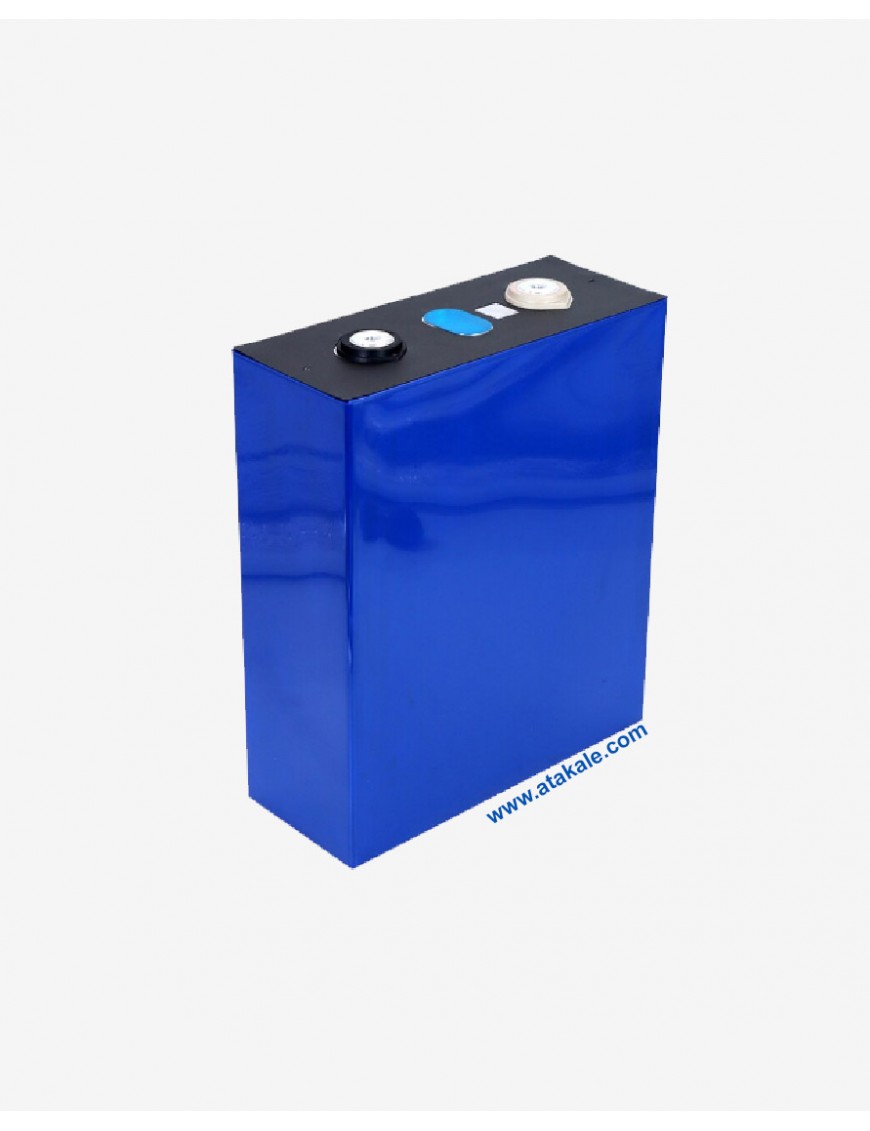

Ctechi 3.2Volt 280AH Lithium LifePo4 912wh Rechargable  Prismatic Cell Battery

Ctechi 3.2Volt 280AH Lithium LifePo4 912wh Rechargable Prismatic Cell Battery

Brand:Ctechi
Product Code: Ctechi Prismatic 280AH
Reward Points: 143
SKU : Ctechi 3.2V280AH LFP
Product available in stock : 1
  • 5,577.00₺

  • Ex Tax: 4,647.50₺
  • Price in reward points: 14300
  • 17 or more 5,460.00₺
  • 100 or more 4,875.00₺

Available Options


The products can be delivered from the factory, Ankara or Istanbul branch. If you are close to the branches of our company, you can check the stock in our unit close to you by contacting us by phone or e-mail.
Shippment Fee :You can order or order shipping cost. Those who cannot get cheap money from our company.
Dimension 500km 750km1000km+++
Box-Shippment1day2 day 3 day5 day
By Truck3 day 4 day 5 day
7 day
  • Easy to buy & return
  • 100% Secure Payments
  • 24x7 Support Available
  • Shop with our Application

Tags: Ctechi, Ctechi 3.2volt, prismatic lifepo4, 280ah prismatic

Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
Taksit Tutarı
Toplam Tutar
3 x 1.638,81 TL
4.916,42 TL
6 x 878,02 TL
5.268,09 TL
9 x 630,52 TL
5.674,65 TL
12 x 512,30 TL
6.147,54 TL
- Caution and prohibition
Before using and handling the pack, see carefully attached “Handling Instruction for Rechargeable Lithium ion battery Pack”.
For safety reasons rechargeable batteries are not shipped in a low remaining capacity state. Charge before using. Do not connect multiple battery packs as parallel or serials for using. This might damage the battery pack, even your equipment’s.
-Warranty
Manufacturer will be responsible for replacing the battery pack against defects or poor workmanship for 12 months from the date of shipping. Any other problem caused by malfunction of the equipment or misuse of the battery is battery is not covered under this warranty.
- Handling Instruction Guide for LiFePO4 Battery Pack
-. General
Battery packs supplied by CTECHI or CPKD have to be handle carefully according to the specification. Here are
some more to be followed.
- Storage of pack
The packs are requested to be stored under the following conditions:
a. Indoor storage in a cool circumstances without direct sun light on the packs or cartons.
b. Store batteries in a dry location with low humidity, and a temperature range of - 20°C to +30°C. In case of the
c. As long-term storage can accelerate battery self-discharge and lead to the deactivation of the batteries. To
minimize the deactivation effect, store battery packs in a temperature range of +10°C to +30°C. d. When charging for the first time after long-term storage, deactivation of the packs may have led to decreased
capacity. Recover such packs to original performance through repeating several cycles of full charging and discharging.
e. When store packs for more than 6 month, charge at least once charring require per 6 months to prevent leakage
and deterioration in performance due to self-discharging.
-. Charging pack
a. Use suitable charger with the specified voltage and current. We strongly recommend CTECH and CPKD smart battery charger. We can recommend the usage or specification of the charger manufacturing. If you want to get the information about it, please contact us.
b. Never attempt reverse charging. Charring with polarity reversed can cause a reversal in battery polarity, causing gas pressure inside of the battery to rise, which can be lead to leakage of the batteries in the pack.
c. Avoid overcharging. Repeated overcharging can be lead to deterioration in pack performance. And Over-heat occurred.
d. Charging efficiency drops at temperatures above 40°C.
- Protection from unexpected damaged to pack
a. (+) and/or (-) terminals must not be connected in metal wire, necklace, chains.
b. Do not drop packs from height in order to prevent them from possible malfunction or damage.
c. Do not twist or bend packs in order to prevent possible damage.
- For Safety
a. Do not disassemble packs.
b. Do not use pack when something abnormal found such as smells, deformation, discoloration, and so on.
d. Do not re-use LiFePO4 cells or other parts after removing from the packs.
e. When the electrolyte leakage occurs, do not touch the liquid.
Installation location
Make sure that the installation location meets the following conditions:
1) The area is completely waterproof
2) The floor is flat and level.
3) There are no flammable or explosive materials.
4) The ambient temperature is within the range from 0°C to 50°C.
5) The temperature and humidity are maintained at a constant level.
6) There is minimal dust and dirt in the area.
7) The distance from heat source is more than 2 meters.
8) The distance from air outlet of inverter is more than 0.5 meters.
9) The installation areas shall avoid of direct sunlight.
10) There is no mandatory ventilation requirements for battery module, but
please avoid of installation in confined area. The aeration shall avoid of
high salinity, humidity or temperature
Grounding
Grounding cables shall be 10AWG or higher yellow-green cables. After connection, the resistance from battery grounding point to Ground connection point of room or installed place shall smaller than 0.1Ω.
1) based on metal directly touch between the module’s surface and rack’s surface. If using painted rack the corresponding place shall remove the painting.
2) install a grounding cable to the grounding point of the modules
Cabinet Installation
1) Put the battery into the cabinet
2) Drive the 4 pcs screws
3) Connect the cables between battery modules
4) Connect the cables to inverter
Trouble shooting.
Problem determination based on
1) Whether the battery can be turned on or not
2) If battery is turned on, check the red light is off, flashing or lighting
3) If the red light is off, check whether the battery can be charged/discharged  or not. Possible conditions: 1) Battery cannot turn on, switch ON and press the red SW the lights are all no lighting or flashing.
a) Capacity too low, or module over discharged. solution: use a charge or inverter to provide 48-53.5V voltage. If battery can start, then keep charge the module and use monitor tools to check the battery log.
If battery terminal voltage is ≤45Vdc, please use ≤0.05C to slowly charge the module to avoid affect to SOH. If battery terminal voltage is >45Vdc, it can use ≤0.5C to charge.
If battery cannot start, turn off battery and repair.
2) The battery can turn on, but red light is lighting, and cannot charge or discharge. If the red light is lighting, that means system is abnormal, please check values as following
b) Temperature: Above 60℃ or under -10℃, the battery could not work. Solution: to move battery to the normal operating temperature range between 0℃ and 50℃
c) Current: If current exceeds 90A, battery protection will turn on. Solution: Check whether current is too large or not, if it is, change the settings on power supply side.
32
d) High Voltage: If charging voltage above 54V, battery protection will turn on. Solution: Check whether voltage is too high or not, if it is, to change the settings on power supply side. And discharge the module.
e) Low Voltage: When the battery discharges to 44.5V or less, battery protection will turn on. Solution: Charge the battery till the red light turns off.
f) Cell voltage high. The module voltage is lower than 54V, SOC LED does not all on. When discharge the module protection disappear. Solution: keep charge the module by 53-54V or keep the system cycle. The BMS can balance the cell during cycling.
3) Unable to charge and discharge with red LED on. The temperature is 0~50 degree. Use charger to charge, not possible. Use load to discharge, not possible.
g) Under permanent protection. The single cell voltage has been higher than 4.2 or lower than 1.5 or temperature higher than 80 degree. Solution: Switch off the module and contact your local distributor for repair.
4) Unable to charge and discharge without red LED on. The temperature is 0~50 degree. Use charger to charge, not possible. Use load to discharge, not possible.
h) Fuse broken. Solution: Switch off the module and contact your local distributor for repair.
Battery Maintenance
• When the customer receives the battery, they should check the basic function first, and make sure no damage occurred during transport. Please test the battery voltage, charging function, discharge function, and display function; if there are any anomalies, please stop installation and notify us immediately. After installing the battery according to the installation manual, fully charge the battery before using it for the first time. Upon being fully charged and discharged between three and five times, the battery will reach its maximum capacity.
• To prolong their lifecycle, charge batteries when their capacity is low. If batteries are not charged during this time and they are left in a deficient state for a prolonged period, this will adversely affect the battery life. If those batteries will not be used for a long time, keep them at half-capacity and float-charge the battery every two months, for one hour each time.
• The battery should be installed in a dry, clean, and wellventilated area, while avoiding ignition sources and proximity to flammable materials. Be sure to disconnect the load (i.e., turn off the electrical equipment) during charging.
• The working temperature of the battery is 41–104°F. (Optimal working temperature is 59–95°F.) Outside this temperature range, the performance of the battery may change. Under such circumstances, it is normal for the capacity or the equipment operating time to change.
• Avoid cleaning the battery case with organic solvents.
• If an accident occurs, do not use carbon dioxide to extinguish the fire; instead, use carbon tetrachloride or sand to extinguish it.
• The battery is a consumable item and its lifecycle is limited. Please replace the battery when the battery capacity is lower than 50% of the rated capacity.

HARGING GUIDELINES

If LiFePO4 batteries are not fully discharged, they do not need to be charged after each use. LiFePO4 batteries do not get damaged when left in a partial state of charge (PSOC). You can charge your LiFePO4 batteries after each use or when they have been discharged up to 80% DOD (20% SOC). If the Battery Management System  BMS) disconnects the battery due to low voltage (voltage will be <10V), remove the load and charge immediately using a LiFePO4 battery charger.

CHARGING TEMPERATURE

LiFePO4 batteries can be safely charged between 0°C to 45°C (32°F to 113°F). LiFePO4 batteries do not require temperature compensation for voltage when charging at hot or cold temperatures. All Canbat LiFePO4 batteries come with an internal BMS that protects the battery from low and high temperatures. If the BMS disconnects due to low temperature, the battery must warm up for the BMS to reconnect and accept the charging current. If the BMS disconnects because of high temperature, the battery will need to cool down before the BMS will accept charging the battery. Please refer to your specific battery’s datasheet for the BMS low temperature and high-temperature cut-off and reconnect values.

The charging and discharging temperature for lithium batteries from our LT series is -20°C to 60°C. Canbat Low Temperature (LT) Lithium Batteries are cold-weather rated, designed for Canada’s cold climates. These batteries have a built-in heating system featuring proprietary technology that draws power from the charger. No additional components are required. The entire process of heating and charging is completely seamless. The heating system automatically activates once charging below 0°C is attempted, and it automatically deactivates when it’s no longer needed. The heating system does not take power from the battery, but rather from the charger, ensuring the lithium battery is not discharging itself and keeping you powered. Simply plug the LT lithium battery into the LiFePO4 charger and the internal heating and monitoring systems take care of the rest.

HOW TO CHARGE LIFEPO4 BATTERIES WITH A LEAD-ACID CHARGER

Most lead-acid battery chargers can be used with LiFePO4 batteries as long as they are within the appropriate voltage guidelines. AGM and Gel algorithms typically fall within the LiFePO4 voltage requirements. The voltage for flooded battery charging algorithms is often higher than LiFePO4 charging requirements, which will result in the BMS disconnecting. If this happens, it is generally good practice to replace your charger for one with a LiFePO4 charge profile. Since the BMS protects the battery, using lead-acid chargers will typically not damage the battery.

Note that if the BMS disconnects due to low voltage, a lead-acid battery charger may not be able to reconnect the BMS, even if the charger has the acceptable charging parameters to charge LiFePO4. This is because when the BMS disconnects, the lithium battery will not have a voltage as it will read 0V on a voltmeter, while lead-acid chargers require the battery to read out a voltage to start charging. If the battery is reading 0V, the lead-acid battery charger will not be able to understand that a battery is connected and that it should start charging. This is also true for some low-quality lithium chargers. It is always recommended that you invest in a high-quality LiFePO4 charger to ensure high performance and longevity. Feel free to contact Canbat should you have any questions.

CHARGING LIFEPO4 IN PARALLEL

When connecting LiFePO4 batteries in parallel, please make sure each battery is within 0.1V of each other before putting them in service, This will minimize the chance of imbalance between batteries. If you’re charging 12V LiFePO4 batteries, the charging voltage should be between 14V – 14.2V. When charging 24V batteries in parallel, the charging voltage should be 28V – 28.4V. Charging 36V lithium batteries in parallel requires a voltage of 42V – 42.6V. Finally, charging 48V LiFePO4 batteries require voltage parameters of 56V – 56.8V. Below is a table with a summary showing the voltage requirements for each system voltage.



System VoltageCharging parameters
12V14V – 14.2V
24V28V – 28.4V
36V42V – 42.6V
48V56V – 56.8V



The voltage parameters apply to both charging profiles CC and CC-CV. If your charger’s voltage is lower than those listed in the table, it will not damage your battery, but it will be undercharged, and it will not provide the full rated capacity of the battery. If your charger’s voltages are higher than those listed in the tables above, the BMS may disconnect the battery and you may have to remove the load to reconnect. We recommend you replace the charger to avoid this inconvenience and to invest in a high-quality LiFePO4 battery charger.

CHARGING LIFEPO4 BATTERIES IN SERIES

When connecting batteries in series, please make sure each battery is within 50mV (0.05V) of each other before putting them in service. This will minimize the chance of an imbalance between batteries. If your batteries get out of balance, the voltage of any battery is >50mV (0.05V) from another battery in the set, you should charge each battery individually to rebalance. You can charge each battery individually periodically to avoid imbalance. When charging LiFePO4 batteries in series, it is best to use a multi-bank charger that charges each battery individually to ensure the cells remain balanced. You can also use a 24V battery LiFePO4 charger or a 48V battery LiFePO4 charger if you’d like to charge your system as a whole.

CHARGING LIFEPO4 WITH AN INVERTER/CHARGER AND/OR CHARGE CONTROLLER

Below are the key, typical charger inputs when using an inverter/charger or charge controller for charging LiFePO4 batteries. Many inverter/ chargers require additional parameters, please contact Canbat technical support for assistance. LiFePO4 batteries do not require equalizing. LiFePO4 batteries do not require temperature compensation for voltage when charging at hot or cold temperatures.



PARAMETER12V SYSTEM24V SYSTEM36V SYSTEM48V SYSTEM
Bulk Voltage14V – 14.6V28V – 29.2V42V – 43.8V56V – 58.4V
Absorption Voltage14V – 14.6V28V – 29.2V42V – 43.8V56V – 58.4V
Absorption Time0- 6 min0- 6 min0- 6 min0- 6 min
Float Voltage13.8V ± 0.2V27.6V ± 0.2V41.4V ± 0.2V55.2V ± 0.2V
Low Voltage Cutoff11V22V33V44V
High Voltage Cutoff14.629.2V43.8V58.4V

CHARGING LIFEPO4 WITH ALTERNATOR AND DC TO DC CHARGERS

Depending on the quality of the alternator, it may work fine to charge LiFePO4 batteries without modifications. However, low-quality alternators with poor voltage regulation can cause the BMS to disconnect LiFePO4 batteries. If the BMS disconnects the batteries the alternator may be damaged. To protect your LiFePO4 battery and alternator, please be sure to use a compatible high-quality alternator or install a voltage regulator. You can also use a DC to DC charger to safely and effectively charge your batteries including house banks. Installing a DC to DC charger is the recommended option when it comes to charging lithium with an alternator.

FUEL GAUGES FOR LITHIUM BATTERIES

If you are using a voltage-based fuel gauge that is designed for lead-acid batteries, it will not accurately measure the state of charge (SOC) of LiFePO4 batteries. Please replace your fuel gauge with one that measures current rather than voltage to accurately measure the state of charge of lithium iron phosphate batteries.

If you have any technical questions, please contact Canbat Technical Support at +1 778-358-3925.

FREQUENTLY ASKED QUESTIONS (FAQ)



CAN I CHARGE LITHIUM WITH SOLAR PANELS?

Yes, you can charge Canbat lithium batteries with solar panels. In fact, you can charge them with any type of charging equipment, as long as the charging voltage is within 14V to 14.6V for our 12V LiFePO4 batteries.



CAN I CHARGE LITHIUM WITH AN ALTERNATOR?

Yes, but it is recommended to invest in a DC to DC charger to protect your LiFePO4 battery and alternator.



CAN I CHARGE LITHIUM WITH A LEAD-ACID CHARGER?

Most lead-acid battery chargers can be used with LiFePO4 batteries as long as they are within the appropriate voltage guidelines. AGM and Gel algorithms typically fall within the LiFePO4 voltage requirements. The voltage for wet cell or flooded battery charging algorithms are often higher than LiFePO4 requirements, which will result in the BMS disconnecting the battery at the end of the charge cycle, and may result in the charger displaying an error code. If this happens, it is generally good practice to replace your charger. Since the BMS protects the battery, using lead-acid chargers will not damage the battery.



HOW TO CHARGE A LIFEPO4 BATTERY IN THE COLD?

LiFePO4 batteries can safely charge between 0°C to 45°C (32°F to 113°F). If your application requires you to recharge in freezing temperatures, Canbat Low Temperature series (LT) can be recharged between -20°C to 45°C (-4°F to 113°F). The LT series has a built-in heating system featuring proprietary technology that draws power from the charger itself. No additional components are required. The entire process of heating and charging is completely seamless. The heating system automatically activates once charging below 0°C is attempted, and it automatically deactivates when it’s no longer needed. The heating system does not take power from the battery, but rather from the charger, ensuring the battery is not discharging itself. Simply plug the battery into the lithium charger and the internal heating and monitoring systems take care of the rest.



DO I NEED A SPECIAL CHARGER FOR LITHIUM?

The short answer is no. In order to fully charge a 12V LiFePO4 battery, a charger with a voltage of 14V to 14.6V is required. Most AGM battery chargers are within that range and they would be compatible with Canbat lithium batteries. If you have a charger with a lower voltage, it may still charge the battery, but it won’t charge it to 100%. A charger with a higher voltage would not charge the battery and the BMS would enter protection mode due to its high voltage disconnect feature. Although many AGM battery chargers are compatible with LiFePO4, wet cell or flooded battery chargers are not compatible as they typically charge at a higher voltage.



CAN I FULLY DISCHARGE A LITHIUM BATTERY?

Canbat LiFePO4 batteries can be discharged up to 100% of their capacity. However, to optimize the performance of your LiFePO4 battery, to achieve a higher cycle life, and to avoid the BMS disconnecting the battery, we recommend limiting the discharge to 80%. If the BMS disconnects the battery due to low voltage, at 100% depth of discharge, remove the load and recharge using a LiFePO4 charger to reactivate the BMS.



CAN LITHIUM DISCHARGE IN COLD TEMPERATURES?

LiFePO4 batteries can safely discharge between -4°F to 140°F (-20°C to 60°C). All Canbat LiFePO4 batteries come with a built-in BMS that protects the battery from low-temperatures and high-temperatures. If the BMS disconnects due to cold or high temperature, wait until the temperature is more suitable and the BMS will reconnect automatically.



HOW DO I STORE LITHIUM BATTERIES?

It is recommended to store LiFePO4 batteries at about 50% state of charge (SOC). If the batteries are stored for long periods of time, cycle the batteries at least every 6 months. Do not store batteries that are discharged. They do not require a trickle charger. · Recommended storage temperature: -5 to +35°C (23 to 95 °F) · Storage up to 1 month: -20 to +60°C (4 to 140 °F) · Storage up to 3 months: -10 to +35°C (14 to 95 °F) · Extended storage time: +15 to +35°C (59 to 95 °F) It is highly recommended to store lithium batteries indoors during the offseason.



CAN I CONNECT 12V LITHIUM IN SERIES?

Yes, you can connect up to four 12V batteries of the same model in series to obtain a higher voltage. Do not connect lithium batteries in both parallel and series simultaneously. Please note that the 24V lithium batteries are designed for 24V applications and do not support series connections. Likewise with the 36V and 48V lithium batteries. When charging LiFePO4 batteries in series, it’s recommended to use a multi-bank battery charger that can charge each battery individually. If that’s not an option, you can also use a 24V battery LiFePO4 charger or a 48V battery LiFePO4 charger if you’d like to charge your system as a whole. Canbat lithium batteries support charging in series.



CAN I CONNECT 12V LITHIUM IN PARALLEL?

Yes, you can connect up to four 12V batteries of the same model in parallel to obtain a higher capacity. Do not connect lithium batteries in both parallel and series simultaneously. Canbat 24V and 36V lithium batteries also support up to 4 units in parallel. Canbat 48V LiFePO4 batteries support up to 14 units in parallel as they are designed for larger projects. Canbat lithium batteries support charging in parallel.



CAN I INSTALL A LITHIUM BATTERY ON ITS SIDE?

Yes, Canbat LiFePO4 batteries can be installed upright or on their sides. Please fasten the battery if installed in a moving vehicle, such as in an RV or a boat. Please also avoid placing anything over the battery, and it’s recommended to cover the terminals with a plastic cap to prevent an external short circuit.



ARE LIFEPO4 BATTERIES SAFE?

Yes, LiFePO4 is a safe chemistry and the most stable lithium-type battery on the market. Canbat lithium is UL 1642 certified, which means they have been tested for short-circuit, abnormal charging, crush, impact, shock, vibration, heating, temperature cycling and pressure. All Canbat LiFePO4 batteries come with an internal Battery Management System. The BMS protects against

  1. Under-Voltage – during discharge
  2. Over-Voltage – during charge or regen conditions
  3. Over-Current – during discharge
  4. Low-Temperature – during charge and discharge
  5. High-temperature – during charge and discharge
  6. Short-Circuit Protection – protects battery cells from damage
  7. Single Cell Equalization and balancing



If you already have a lead-acid or a LiFePO4 charger and you want to make sure it’s compatible, chat with one of our battery experts. We can check your charger’s user manual and confirm the voltage parameters. Canbat offers Canada-based 24/7 chat support to all its clients.


Ctechi 3.2Volt 280AH Prismatic Lifepo4  Akü
Features

Benefits
More than 6000 Cycle Lithium Ion Battery
Support external connections in series 1000V
Rugged stainless steel body good looking
6000 cycles /15 years , whichever comes first
High  level IP65 and insulation protection


 Custom Design built storage systems
Stainless steel handles warranty 3500 test
Volumetric Energy Density increased  23.5%

Battary Voltage Range
Capacity Range
Number fo Cycle  Life
3.2-1000V
90Ah-500VAh
3000-10000cyle

Lithium Battery Pack

CTECHI is a global premium battery supplier,we can not only provide standardized products for sale, but we can also provide customized services, supply lithium battery pack solution. When you have a need, please let us know and we will provide different solutions according to your needs,Customized product applications include outdoor adventure, camping, military industry, medical industry, energy storage industry, low-speed small electric car, golf carts, etc. If your application industry is not in these examples, don't worry, we can customize a product that belongs to you as long as it meets the requirements,In this section, you will browse through some of the products we have customized for other customers for your reference.

LiFePO4 Battery 3.2V 280Ah for Solar Energy System

Origin
CHINA
Package
Industrial Package
Certificate
CE/RoHS/UN38.3/MSDS
Warranty
1 Years
Color
Blue
Charge
Yes
Operating Temperature
-20+55℃
MOQ
8pieces
Payment
L/C, D/A, D/P, T/T, Western Union, Paypal
Brand
CTECHI
Item
CTECHI LiFePO4 3.2V 140ah Cell
Weight
5.2kg
Voltage Nominal
3.2V
Energy
912Wh
Dimension
204.8x173.6x71.5mm
Capacity Nominal
 280Ah

Girl in a jacket
Girl in a jacket
Girl in a jacket

There are three main types of lithium-ion batteries (li-ion): cylindrical cells, prismatic cells, and pouch cells. In the EV industry, the most promising developments revolve around cylindrical and prismatic cells. While the cylindrical battery format has been the most popular in recent years, several factors suggest that prismatic cells may take over.

Because Laserax provides laser solutions for battery manufacturing, we are watching these developments closely. Before we go over what’s coming, let’s do a quick overview of the two types of batteries.

What Are Prismatic Cells

CTECHI prismatic cell is a cell whose chemistry is enclosed in a rigid casing. Its rectangular shape allows efficiently stacking multiple units in a battery module. There are two types of prismatic cells: the electrode sheets inside the casing (anode, separator, cathode) are either stacked or rolled and flattened.

For the same volume, stacked prismatic cells can release more energy at once, offering better performance, whereas flattened prismatic cells contain more energy, offering more durability.

Prismatic cells are mainly used in energy storage systems and electric vehicles. Their larger size makes them bad candidates for smaller devices like e-bikes and cellphones. Therefore, they are better suited for energy-intensive applications.

Prismatic cells are much larger than cylindrical cells and hence contain more energy per cell. To give a rough idea of the difference, a single prismatic cell can contain the same amount of energy as 20 to 100 cylindrical cells. The smaller size of cylindrical cells means they can be used for applications that require less power. As a result, they are used for a wider range of applications.

CTECHI specializes in battery design, production, marketing and services in many different industry sectors, such as Telecom Base Stations, AGV, RV, E-Forklift, E-Sweeper, Golf Carts, Golf Trolley, Gardering Machine, Boats, Cleaning Machine, Solar Energy Storage and so on. We are so familiar with all these projects because we`ve work on them for years.

Size

Many of project purchasers and the project development engineer are meeting various problems when they work with the battery selecting and sourcing, such as short cycle life caused by cell differences, terrible heat cooling management, slow and poor developing ability of a more functional BMS, difficulties of integrating BMS and other parts by communication protocol and on. We are deeply aware of all these existing problems, along with the market growing, lithium batteries are solution engineering require much better engineer team than many other products. CTECHI were built to solve this problems for you, and save much of money and energy of sourcing a reliable lithium battery products.

Connection

Because prismatic cells are larger than cylindrical cells, fewer cells are needed to achieve the same amount of energy. This means that for the same volume, batteries that use prismatic cells have fewer electrical connections that need to be welded. This is a major advantage for prismatic cells because there are fewer opportunities for manufacturing defects.

Power

Cylindrical cells may store less energy than prismatic cells, but they have more power. This means that cylindrical cells can discharge their energy faster than prismatic cells. The reason is that they have more connections per amp-hour (Ah). As a result, cylindrical cells are ideal for high-performance applications whereas prismatic cells are ideal to optimize energy efficiency.

Example of high-performance battery applications include Formula E race cars and the Ingenuity helicopter on Mars. Both require extreme performances in extreme environments.

The EV industry evolves quickly, and it’s uncertain whether prismatic cells or cylindrical cells will prevail. At the moment, cylindrical cells are more widespread in the EV industry, but there are reasons to think prismatic cells will gain in popularity.

Why Prismatic Cells Might Be Taking Over

First, prismatic cells offer an opportunity to drive down costs by diminishing the number of manufacturing steps. Their format makes it possible to manufacture larger cells, which reduces the number of electrical connections that need to be cleaned and welded.

Prismatic batteries are also the ideal format for the lithium-iron phosphate (LFP) chemistry, a mix of materials that are cheaper and more accessible. Unlike other chemistries, LFP batteries use resources that are everywhere on the planet. They do not require rare and expensive materials like nickel and cobalt that drive the cost of other cell types upward.

There are strong signals that LFP prismatic cells are emerging. In Asia, EV manufacturers already use LiFePO4 batteries, a type of LFP battery in the prismatic format. Tesla also stated that it has begun using prismatic batteries manufactured in China for the standard range versions of its cars.

The LFP chemistry has important downsides, however. For one, it contains less energy than other chemistries currently in use and, as such, can’t be used for high-performance vehicles like Formula 1 electric cars. In addition, battery management systems (BMS) have a hard time predicting the battery’s charge level.

When it comes to battery pack production demand, energy storage systems (ESS) are just as important as electric vehicles. ESSs are already using prismatic cells and it is very likely that they will keep using them. Prismatic cells have a longer cycle life, are less dangerous, and come at a low cost compared to cylindrical cells. You can watch this video to learn more about the LFP chemistry and why it is gaining in popularity.

Prismatic Cells in Energy Storage Systems

When it comes to battery pack production demand, energy storage systems (ESS) are just as important as electric vehicles. ESSs are already using prismatic cells and it is very likely that they will keep using them. Prismatic cells have a longer cycle life, are less dangerous, and come at a low cost compared to cylindrical cells.
The Switch to Prismatic Batteries
With its tabless cell design, high energy density, and low manufacturing cost, Tesla’s 4680 cylindrical cell is probably the most noteworthy battery cell at the moment. But recently, Elon Musk has talked about the advantages of prismatic cells, and Tesla has begun using them in certain car models.
The 4680 cylindrical cells haven’t been replaced by prismatic cells yet, but Tesla’s next move will be telling of what the future holds. Will they replace the 4680’s Nickel-Cobalt-Aluminum oxide (NCA) chemistry with the LFP chemistry? If so, will they switch to prismatic cells, the preferred format for this chemistry? With the increased cost of raw materials around the world, it is a strong possibility.
The Life Span
Overall, due to the different manufacturing processes, the cylindrical type will have slightly more cycles than the prismatic LiFePO4 cell.
Weight
Cylindrical cells will be heavier because most of them have steel shells. Prismatic cells are lighter because most of them use stainless steel and aluminum shells.
Manufacturing Cost
Because cylindrical cells have a long history and simpler processing and production technology, the manufacturing cost will be relatively cheaper, while prismatic cells are relatively new, and due to the limitations of processing technology and no special standardized production specifications, So the manufacturing cost will be higher.
Damage Cost
In a battery pack composed of cylindrical cells, if one cell is damaged, it will not seriously endanger the entire battery pack. At the same capacity, damage to a prismatic cell will seriously affect the entire battery pack, which means that the cost of damage is high.
Easy to Expand
Since most scenarios currently require large-capacity batteries, the option of capacity expansion has become a consideration for many people. Relatively speaking, it is more difficult to expand the capacity of cylindrical cells. Under the same capacity, cylindrical cells may need tens of thousands of cells, but prismatic cells may only need a small number, which means that prismatic cells may require only a few cells. The expansion of prismatic LiFePO4 cells is simpler.
Differences in Chemical Activity
Due to the internal structure and shape of the cylindrical cell, the electrolyte distribution inside the cell is very uniform, which is conducive to full utilization. In the inner corners of the prismatic cell, some electrolytes will be in an idle state, and the prismatic structure will exert a certain pressure on the corners. A simple summary is that the utilization rate of the electrolyte will be relatively low.
Heat Dissipation
Cylindrical cells will have better heat dissipation, because there is no way to arrange them as closely as prismatic cells, and there will be gaps between the cells, which provide space for heat dissipation.

CTECHI LiFePO4 Battery Pack Feature:

High Energy Density

LiFePO4 batteries store much more energy compared with lead acid batteries. LiFePO4 batteries have a deep charge rate providing maximum versatility.

ECO Friendly

LiFePO4 batteries use more abundant and non-toxic materials that can be produced with less energy and easy to recycle.

Powerful

LiFePO4 are nearly 4 times as powerful as SLA and can provide more time of use.

Long Service Life

LiFePO4 batteries have a long service life, these batteries will provide you with 3000 complete charge and discharge cycles.

Light Weight

Conveniently light as well as powerful making LiFePO4 Batteries very versatile.

High Efficiency

LiFePO4 batteries have a flatter discharge curve that holds above 12V for up to 90% of its usage capacity. It consumes an even amount of energy efficiently, allowing for longer use and without significant fluctuations in energy consumption. By contrast, Sealed lead acid batteries increase their consumption rate as they discharge and this consumption rate becomes even greater when SLA batteries hit 50%.

 LiFePo4 battery pack applications:

solar lamp backup power supply, stroller power supply, outdoor lighting, monitoring emergency power supply, xenon lamp backup power supply, outdoor audio backup power supply, car wash power supply, electric sprayer power supply, outdoor audio backup power supply, electronic scale power supply, elevator power supply, access control power supply, UPS safety monitoring, fire engine, emergency lighting, ship, RV, backup power supply, golf cart, forklift, AGV, solar energy and other places where lead acid is used.

Comprehensive One-stop service of R&D, production, and marketing of all kinds of high-efficient new energy batteries and battery packs.

Professional  Focus on high-efficient battery manufacturing over 15 years experience.

Fast Quick delivery: 7 days for samples:15-20 days for batch goods.

Quality With CE/ISO/RoHS/UN38.3/MSDS/UL certification. 100% tested and inspection before shipping to make no unqualified goods in order to reduce your risk.

Reputation Keep a long-term stable cooperation relationship with numerous well-known branded batteries' retailers and agents at home and abroad, among them are Panasonic, Maxell, Sanyo, LG, Samsung, Sony, FDK, Mitsubishi, Toshiba, etc.

Service 24/7/365 on-line service provide instant technical support. Support multiple payment way.such as L/C, T/T, Western Union, MoneyGram, Paypal, etc.


What is the perfect battery?

 1. The cycle life of CTECHI LiFePO4 battery pack is more than 10 times that of lead acid, while the life of CTECHI LiFePO4 battery pack is more than 5 times that of lead acid. This helps minimize replacement costs and reduce total cost of ownership.

2. The lightweight CTECHI LiFePO4 weighs less than half as much as the lead-acid battery, providing customers with lighter-weight solutions to optimize their product design and avoid unnecessary oversized sizes, thereby helping to minimize costs and system complexity.

3. High power capacity CTECHI LiFePO4 is designed to provide twice the energy of lead-acid, including high discharge rates, while maintaining high energy capacity to maximize product performance.

4. Best-in-class safety CTECHI LiFePO4 technology provides excellent tolerance and provides the foundation for battery safety. In addition, several system-level protections are used to provide greater durability and reliability than lead-acid and competitive lithium-ion battery technologies.

 LiFePo4 battery pack applications:

solar lamp backup power supply, stroller power supply, outdoor lighting, monitoring emergency power supply, xenon lamp backup power supply, outdoor audio backup power supply, car wash power supply, electric sprayer power supply, outdoor audio backup power supply, electronic scale power supply, elevator power supply, access control power supply, UPS safety monitoring, fire engine, emergency lighting, ship, RV, backup power supply, golf cart, forklift, AGV, solar energy and other places where lead acid is used.

CTECHi Group is composed of three subsidiaries; CTECHi Technology Co. LTD, CPKD Technology Co. LTD and CTECHi Smart Innovations co. LTD. CTECHi’s core business covers battery and battery accessory trade, battery pack production, intelligent hardware and electronic product R&D, production, sales and technical support. We strive to always provide a high-quality one-stop service for all our customers.  CTECHi Technology Co. LTD has a proficient sales team covering the domestic and overseas market. With the most complete state of the art battery production lines, our own branded "CTECHi" products are renowned worldwide. CTECHi Technology Co. LTD is one of the leading battery suppliers with the most complete battery categories.  CPKD Technology Co. LTD is a national high-tech enterprise that is committed to R&D, design, production of various new energy batteries. All production is done per the ISO quality system and certification of the same was awarded. With our battery reliability testing laboratory we are able to provide "UL" "SGS" "UN38.3" certificates and reports. With a strong R&D team, efficient management, rich manufacturing experience, and advanced production technology and equipment, CPKD Technology Co. LTD has rapidly developed into a competitive and high-quality lithium battery pack manufacturer.  CTECHi Smart Innovations co. LTD is the third subsidiary of CTECHi Group. Based on strategic upgrades, market demand and technology advancements, CTECHi Smart Innovations co. LTD is committed to creating state of the art smart hardware and electronic products for both bulk buyers and the B2C market.  CTECHi Group has established partnership with world renowned companies like Panasonic, Sanyo, LG, Samsung, Sony, Maxell, FDK, TI. Adhering to the essentials of good craftsmanship, spirit of growth and focusing on quality, CTECHi Group has built strategic partnerships with universities like the Royal College, Tsinghua University, Beijing University of Aeronautics, etc., and customers like HIK vision, ZTE, Skyworth, IMI, Flextronics, Sanmina etc., striving to have "Made in China" rewritten as "intelligently Made in China " and "Created in China". Based on this goal, the company continues to invest extensively in the accumulation of technological developments.

Adhering to the concept of growth, happiness and respect, we are a down-to-earth entity and we continuously create value for our customer to achieve a win-win situation. With environmentally friendly energy sources being our focus, research and development as the driving force, quality, customer satisfaction, staff achievements, shareholders added value, partner respect and social recognition as our values and mission, we believe that we can improve the lives of all humanity by taking one step at a time.



2. Benefits fromPeak Shaving

House: Load Shifting  Store the power during low-peak andusetheenergy at peak-time. Save the money which happens arising from peak rate. Transmission&Distribution: peak ShavingSave on the electricity bills by reducing peak demand

3. VPP Revenue

VPP creates a network of renewable energy  sources and battery storage systems, connected through a cloud-based technology that manages the stability of clean electricity to maximize your revenue.

Enabling a cost reduction, as well as boosting the system’s efficiency

Product Warranty

The products warranty period is five (5) years from the sales date as mentioned in the  Seller's invoice to the End User("Invoice Date”) or 3500 cycles 80% DOD !"!whichever comes first.

This Warranty period covers a capacity equivalent to 1 cycle per day. Cycle:Discharge the nominal capacity of a charged battery and charge it afterwards. Regarding Self-discharging degradation, 180 days after ex-work is ensured.

In the case of non-artificial damage to the housing, display screen, handles and power terminals, CFE shall replace them for free within one year.

Under this Warranty, CFE is responsible for either battery replacement or battery repair. The Period of Performance Guarantee will continue on any repaired unit. In the event of a replacement units then the Period of Performance guarantee will transfer to the replacement unit.

Inno event will CFE be liable for any consequential, incidental or punitive damages (including without limitation of loss of profit, harm to goodwill or business reputation, or delay damages) arising from or out or the Product or its installation, use, performance or non-performance, or any defect or breach of warranty, whether based on contract, warranty, negligence, strict liability, or any other theory. CFE's aggregate

liabilities, if any, in damages or otherwise, shall not exceed the purchase price paid by the Original Buyer for the product.

Battery Comparison CriteriaLifePo4 BatteryJel/AGM/Opzs Lead Acid Battery
Number of Cycles 80% Deep Discharge6000600
Efficiency
%96%85
Charging time 80% Capacity
2 Hour8 Hour
Safe Capacity Usage%80%60
Maintenance RequirementNoYes
Voltage Stability(%100-%10)14V/12.4V13V/11.51V
weight100AH 12V12 kg30 kg
Operating Temperature (without capacity loss)-20ºC~ 60℃20ºC ~  25℃
Impact vibration resistanceÇok iyiiyi
Shelf Life -Calendar Life15 Sene12 Sene
Standby Discharge Rate%2%3
Maximum withstand temperature90ºC60ºC
Require Special ChargerNoNo
Cell Voltage3.2V2V
Output power Stability 90% dischargeFixedVariable
Instant Maximum Discharge Current 100AH300aH300AH
Maximum Charge Current At Empty100Ah30AH
1 Hour Discharge Capacity90Ah59AH
Maximum Guarantee Given12 Sene2 Sene
Protection
BMS/ElektronikKoruma Yok
How long has it been used1996/( 2017 populer)1950/(1970 populer)
Toxic WasteNoYes/Lead
RecyclingMo%100 recycling
Repair/RecoveryNoPossbile
Serial Parallel ConnectedNoYes
Quality ClassesA,B,C GradeA,B Grade
In case of short circuitWithouth BMS  ExplasionIntense gas will be released
Can it be transported by planeYes(UN3091  UN3481)YEs
Performance below 0ºCCharge No, Decharge YesCharge and Descharge
Overcharge
DemagedOnly capacity lost
BreakdownhighSeldom
Durability

WeakHigh
Reliability
WeakHigh
Use ofDificultEasy
Replace new oneDificult and high costEasy and Cheap
Scrap priceNo Sale Scrapt1USD/kg

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha
Whatsapp Whatsapp Whatsapp Whatsapp
