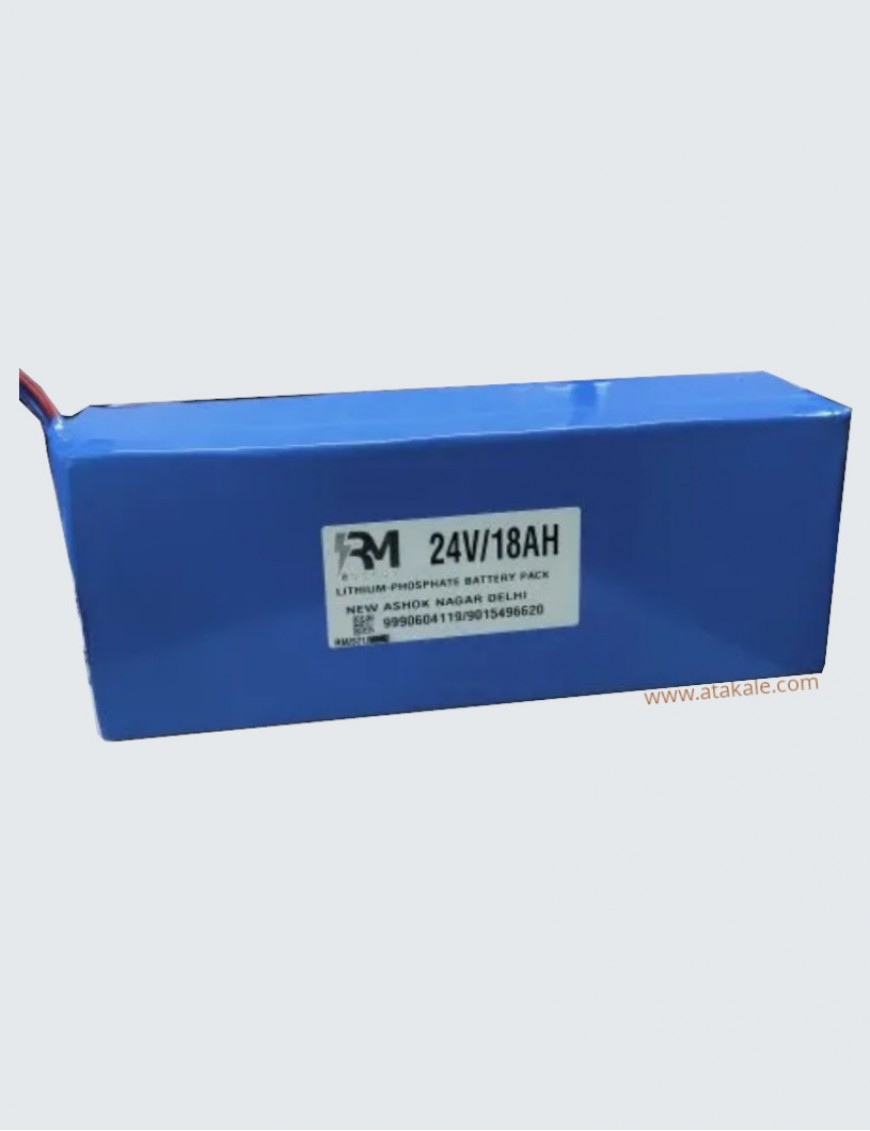

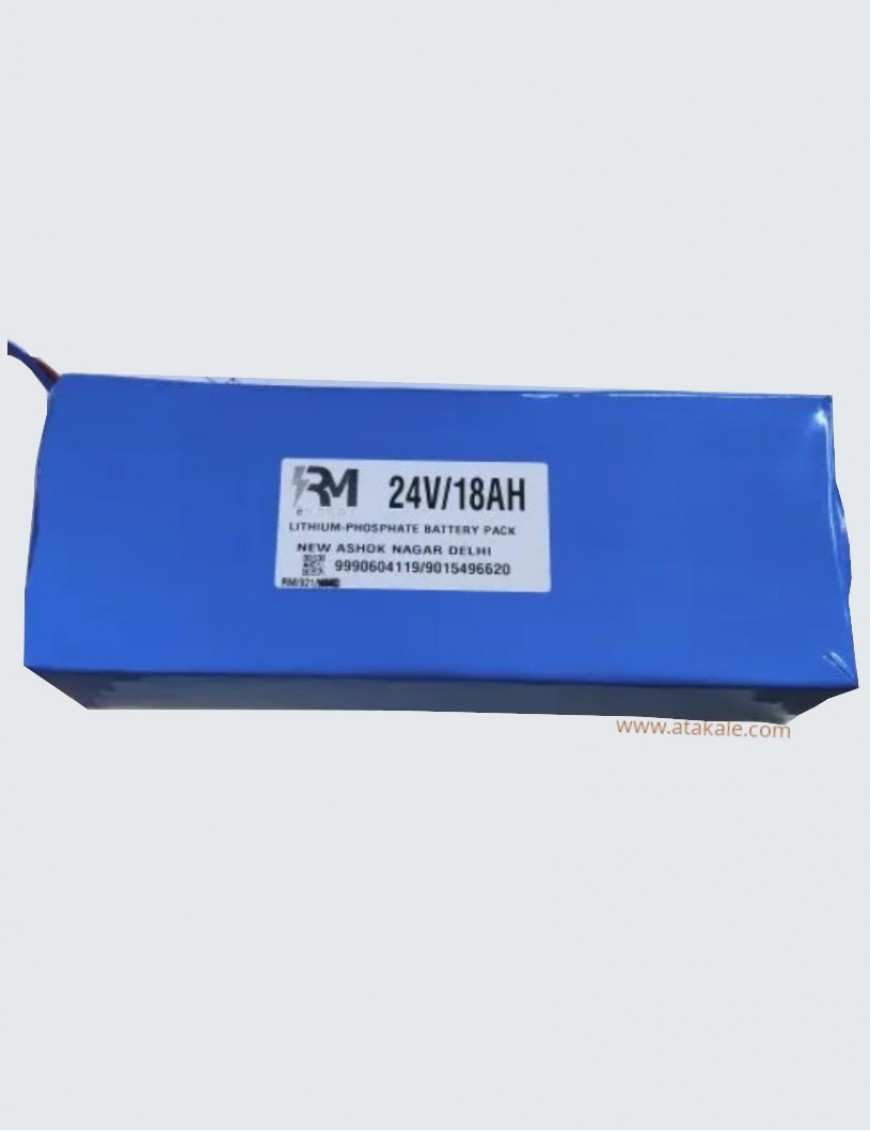

24Volt 20AH Lifepo4
Cylindrical and Prismatic LiFePO4 Cell
PVC Heat Shrink Tube and isolation weather
According to customer requirment Design
3000 cycles /10 years , whichever comes first
Deep Cycle 4s 8s 16s 20s 24S 26s Design
Calendar Life & Performance Guarantee
Improved 100% EVE brand technology
Volumetric Energy Density increased 20.1%
Battary Voltage Range
Capacity Range
Number fo Cycle Life
3.2-96V
10Ah-500VAh
1000-5000cyle
Custom Design Lithium Shrink Battery Pack rechargeable 12V 24V 36V 48V 60V 72V 18650/32700 Li Ion/LFP lithium battery pack
Atakale has the capability to custom design a Lithium Ion battery pack to fit your product’s specific needs. From small single-cell packs to large battery packs, Atakale can design safe and reliable solutions to meet your specifications.
Atakale prides itself on using only the highest quality cells to make Lithium Ion battery packs. Atakale takes the utmost care to ensure that all batteries meet the highest safety standards prior to leaving our facility. See our Test Report for more information. The factory is certificated with ISO 9001, And batteries with UL, UN 38.3And IEC62133, MSDS.
Features | LFP Battery Sepecification
|
Battery Capacity | 20AH |
Battery Voltage | 8S 25.2Volt |
BMS | No Communication,Active balance, 8S, 10AH Charge, 20A Decharge |
Dimension/Weight | 110 (En)X 285(Boy) X 80(Yükseklik) mm 3.66kg
|

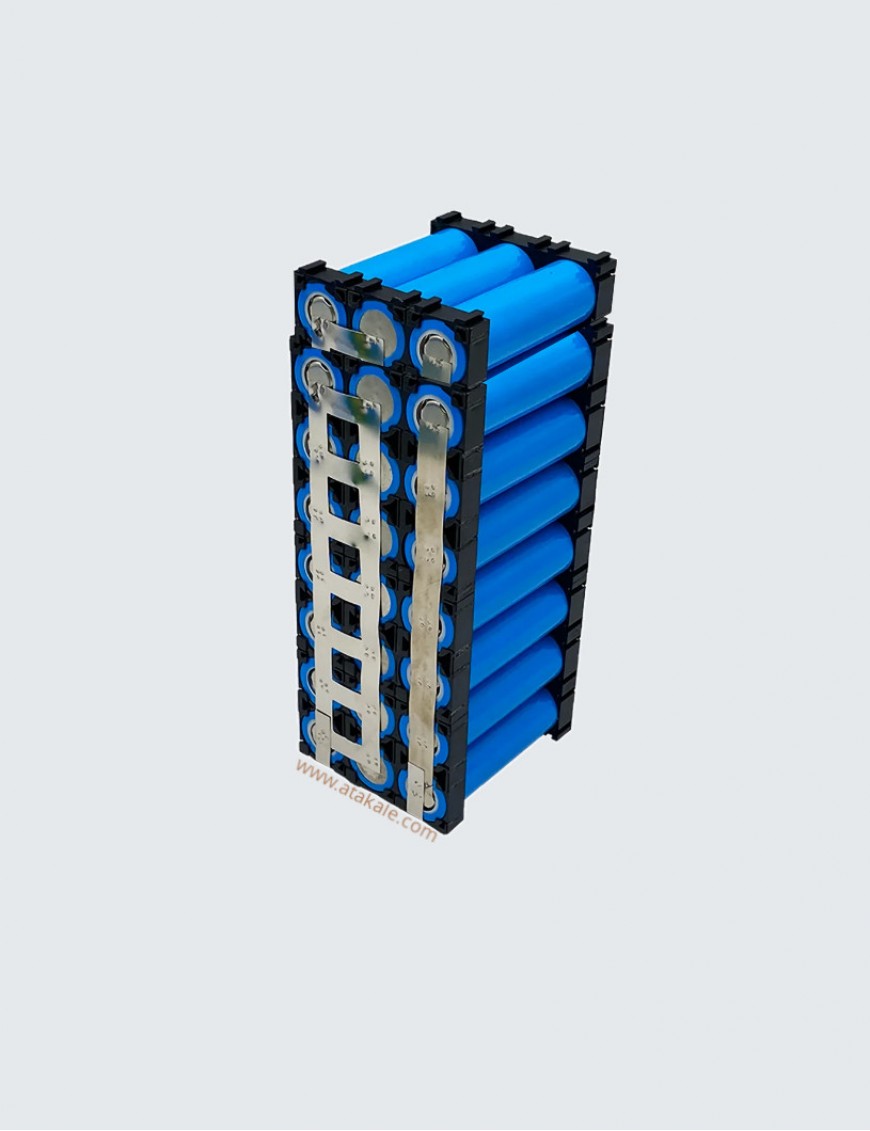

Cell Sequence | 32700-6500mah - 8x3(24 pcs) |
Specifications | Large-scale electric vehicles,electric bus, electric car, E-Tour Car,e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair,electric drill, electric saw, lawn mower,Remote control cars, boat, aircraft, toys,Solar and wind power generation energy storage devices, Telecom base Station,Small medical equipment and portable equipment |
Specification:1. Li-ion cylindrical battery18650/32700 prysmatic battery cells can be easily assemblied to large capacity batttery pack or individually used for consumer electronics etc.Lithium polymer pouch cell Lithium polymer battery has higher safety factor.
2. Communication of monitored data via Battery Management System(BMS) ,built-in automatic protection for over-charge,over-discharge and over-temperature conditions, Short circuit protection, over-current protection,over-load protection, over-discharge protection, inversely-connection protection, temperature control, balance, fuse, thermistor, etc.
3.Maintenance free.
4.Internal cell balancing.
5.Thousands of cycles,100% DOD,under normal conditions.
6.Flame retardant plastics.
Features/Advantage:
1. Ideal drop-in replacement for lead-acid batteries.
2. Longer cycle life than other lithium-ion batteries.
3. Good high-temperature resistance.
4. No memory effect
5. Lighter weight compared with same size lead acid battery
6. IP65 waterproof ratings. Suitable for marine use.
7. Environmental friendly.
8. High density of energy. Light weight.
9. Low self-discharge. Low internal resistance.
10. No Mercury, No fire, No explosion, No leakage.
Application:
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment
Atakale is a professional produce on electric scooter, electric drive, two wheel of electric scooter, electric bicycle, lithium batteries, lithium electricity mobile phone chargers, lithium battery car Auto emergency starter, outdoor mobile power bank products such as research and development, productions, sales and service as one of the technology-based manufacturing company.
Anhui Junwei Electric Bicycle Co.,Ltd has been innovating and forging ahead in practice in terms of quality control, the company strictly adopts international standards, national standards and industry standards to produce the main parts and production process of lithium battery pack.
Atakale TURKEY. was founded in a small workshop to produce starter battery plates, and today has become an international brand, occupying a total area of 1.000 m².In 1993, Akusan started to produce ebonite type starter battery and its first batteries are used as OEM battery of Turkish Ford Factory. Since 1993, AtakaleInc. is using its modern plant to produce battery components, in "East Industrial Zone" of Kayseri, has accelerated its growth in certain steps to be an international firm and a demanded brand.
Atakale is a lithium iron phosphate battery produced by Atakale company with domestic BMS and using cylindrical and prismatic cells. Atakale Battery Industry Inc. ,Moduled Electronics Inc. , and B-het Engineering , Atakale Energy is Turkey's leading Lithium Battery manufacturing company and operates in various sectors, primarily LiFePO4 Technology and GES Services, through its subsidiaries and affiliates. Atakale Energy is registered in Turkey and its head office is Ankara is Turkey.
There are two types of products produced by Atakale . It is in the form of a standard battery with an ABS plastic openable box and mounted in a metal box. There is a battery voltage indicator and terminal terminal connections on the product with Lifepo4 cells installed in the sheet metal box. It is easily opened and serviceable. It is made with cylindrical or prismatic cells. There is no BMS communication. BMS is suitable for parallel connection. However, there is no communication and balancing charging equipment required for serial connection.
It has 20mohm internal resistance. It has a continuous charge and discharge current value of 30A.
The aim of Atakale energy is to coordinate and support the finance, strategy, business development, legal, human resources and sustainability functions in order to ensure that the Group companies operate in a profitable and sustainable manner with favorable competitive conditions; At the same time, it is to determine and follow the corporate management practices applicable throughout Atakale Energy.
For areas without city electricity, the battery pack can be charged by solar panels and used for night lighting; For areas where city electricity is expensive, the battery pack can be charged in the electric valley value period and used in the peak power period; In areas where power is cut from time to time, the battery pack can be used as a UPS to prevent loss of information due to sudden power cuts.
Use UU 12-100 to avoid purchasing high-cost electricity. Use solar energy to power your home and reduce your dependence on the grid. Unlike generators, UU 12-100 need no maintenance, no fuel consumption, and no noise, make your home lights always on, home appliances always run.
For no city power areas, the battery pack can be charged by solar panels and used for night lighting; For the areas that city power is expensive, the battery pack can be charged during the electricity valley value period, and used at the peak power period; For the areas which power off from time to time, the battery pack can be used as UPS, to avoid information loss caused by sudden power outage.
Shandong Blue Carbon Technology Inc. designs, manufactures and markets solar module products for residential, commercial and industrial application worldwide. Our product line consists of superior portable solar chargers, solar water pumps, solar air conditioners and utility on-grid systems.We put customers' needs in the first place, and we are devoted to progress, innovation and ethical choices. Solar energy is related with empowerment, and that's something we take very seriously. Blue Carbon Technology Inc. is a customer-centric company. From pre-purchase decision making to technical support, we are renowned for our first turnaround time and expert advice.Our mission is to deliver innovative photovoltaic technologies for building integration to generate renewable solar electric power. Our hope is to secure the health of our planet for future generation by transforming our infinite supply of sunshine into a practical energy for humanity, with a keen focus on research.
-The battery pack is applicable to commercial lighting, industrial lighting, home lighting, outdoor lighting, camping tourism, farming, planting, the night market stalls, etc.
-All in one mould design and production, easy to install.
-With longer span life LiFePO4 battery,over 12 years lifespan, ensure the whole set products’life span.
-High quality aluminium magnesiumalloy, anti-corrosion, substantial, durable, artistic, practical. High craft manifesting production value of famous brand.
-Dustproof structure d esign, DC output, safe and reliable.
-Integrated packaging, safe and convenient to transport.
Volumetric Energy Density increased by 23.5% LED power display screen and switch buttons Rugged stainless steel body ensures 5year warranty High protection level IP65 Support 1C charge /discharge and excellent heat dissipation design Quick connection and insulation protection Stainless steel handles guarantees 2000 fatigue tests supports four external connections in series with voltage up to 51.2V
Atakale one of Turkey's energy and battery importers and manufacturer . Atakale distributes and wholesales lifepo4 batteries of China's lifepo4 cell Manufacturer Company.
Atakale Rechargeable lithium iron phosphate batteries have the Un38.3 transport safety certificate. The most important advantage is that 4 batteries can be connected in series without the need for any BMS, balancing charge control unit. In addition, batteries can be connected in parallel with each other in the 100mV difference range.
It detects short circuit and overcharge in 1 seconds and protects the battery. The delay time does all the protection operations in 300 microseconds. It can work up to 65ºC without damage. It is one of the most prestigious and affordable Chinese brands sold in Turkey.
Atakale is committed to becoming a first-class supplier of Li-ion power battery and LFP ESS. Blue Carbon's core management and R&D team has been engaged the clean energy business for more than 20 years. Our mission is to promote the use of clean energy and ultimately achieve carbon neutrality. So far, more than 1 thousand Atakale products are being used by users around the world, and more than 3MWh clean energy has replaced fossil energy . We use the most stringent quality management, independent production of modules, PACK, BMS and systems, and deliver products with high quality and low cost a timely manner to achieve our commitment to environmental protection and a green earth.
For no city power areas, the battery pack can be charged by solar panels and used for night lighting; For the areas that city power is expensive, the battery pack can be charged during the electricity valley value period, and used at the peak power period; For the areas which power off from time to time, the battery pack can be used as UPS, to avoid information loss caused by sudden power outage.
The battery pack is applicable to commercial lighting, industrial lighting, home lighting, outdoor lighting, camping tourism, farming, planting, the
night market stalls, et
2. Benefits fromPeak Shaving
House: Load Shifting Store the power during low-peak andusetheenergy at peak-time. Save the money which happens arising from peak rate. Transmission&Distribution: peak ShavingSave on the electricity bills by reducing peak demand
3. VPP Revenue
VPP creates a network of renewable energy sources and battery storage systems, connected through a cloud-based technology that manages the stability of clean electricity to maximize your revenue.
Enabling a cost reduction, as well as boosting the system’s efficiency
■ Volume: The capacity of LiFePO4 battery is bigger than lead- acid cell, with the same volume,it is double of Lead-acid battery.
■ Weight: LiFePO4 is light. The weight is just 1/3 of lead-acid cell with the same capacity.
■ Volume: The capacity of LiFePO4 battery is bigger than lead- acid cell, with the same volume,it is double of Lead-acid battery.
■ No memory effect: No matter the LiFePO4 Battery is in which conditions, it can be charged and discharged whenever you like, no need to discharge totally then charge for it.
■ Durability: The durability of LiFePO4 Battery is powerful and consumption is slow. The time ofcharging and discharging is more than 2000times. After 2000times circulation, the capacity ofthe battery is still more than 80%.
■ Security: LiFePO4 battery passed the strict safety testing, with higher safety performance.
■ Environmental protection: Lithium materials not have any poisonous and harmful substance.lt is regarded as green and environmental protection battery. The battery has no any pollution no matter in the process of production or in the process of using.
Well graded and combination. After multi-selection, to ensure each cell qualified with long life. The connection tech of all interface, be safe and durable, with simple maintenance. Multi-layer protection structure, could be waterproof, shockproof, anti explosion and fire. Various joints, could be customized, safe and durable for long run. Security and reliability, compared with lead-acid battery, the materials of LiFePO4 is the securest, the best choice of solar energy storage battery.
Product Warranty
The products warranty period is five (5) years from the sales date as mentioned in the Seller's invoice to the End User("Invoice Date”) or 2000 cycles 80% DOD !"!whichever comes first.
This Warranty period covers a capacity equivalent to 1 cycle per day. Cycle:Discharge the nominal capacity of a charged battery and charge it afterwards. Regarding Self-discharging degradation, 180 days after ex-work is ensured.
In the case of non-artificial damage to the housing, display screen, handles and power terminals, Blue Carbon shall replace them for free within one year.
Under this Warranty, Blue Carbon is responsible for either battery replacement or battery repair. The Period of Performance Guarantee will continue on any repaired unit. In the event of a replacement units then the Period of Performance guarantee will transfer to the replacement unit.
Inno event will Blue Carbon be liable for any consequential, incidental or punitive damages (including without limitation of loss of profit, harm to goodwill or business reputation, or delay damages) arising from or out or the Product or its installation, use, performance or non-performance, or any defect or breach of warranty, whether based on contract, warranty, negligence, strict liability, or any other theory. Blue Carbon's aggregate
liabilities, if any, in damages or otherwise, shall not exceed the purchase price paid by the Original Buyer for the product.
Battery Comparison Criteria | LifePo4 Battery | Jel/AGM/Opzs Lead Acid Battery
|
Number of Cycles 80% Deep Discharge | 6000 | 600 |
Efficiency
| %96 | %85 |
Charging time 80% Capacity
| 2 Hour | 8 Hour |
Safe Capacity Usage | %80 | %60 |
Maintenance Requirement | No | Yes |
Voltage Stability(%100-%10) | 14V/12.4V | 13V/11.51V |
weight100AH 12V | 12 kg | 30 kg |
Operating Temperature (without capacity loss) | -20ºC~ 60℃ | 20ºC ~ 25℃
|
Impact vibration resistance | Çok iyi | iyi |
Shelf Life -Calendar Life | 15 Sene | 12 Sene |
Standby Discharge Rate | %2 | %3 |
Maximum withstand temperature | 90ºC | 60ºC |
Require Special Charger | No | No |
Cell Voltage | 3.2V | 2V |
Output power Stability 90% discharge | Fixed | Variable |
Instant Maximum Discharge Current 100AH | 300aH | 300AH |
Maximum Charge Current At Empty | 100Ah | 30AH |
1 Hour Discharge Capacity | 90Ah | 59AH |
Maximum Guarantee Given | 12 Sene | 2 Sene |
Protection
| BMS/Elektronik | Koruma Yok |
How long has it been used | 1996/( 2017 populer) | 1950/(1970 populer) |
Toxic Waste | No | Yes/Lead |
Recycling | Mo | %100 recycling |
Repair/Recovery | No | Possbile |
Serial Parallel Connected | No | Yes |
Quality Classes | A,B,C Grade | A,B Grade |
In case of short circuit | Withouth BMS Explasion | Intense gas will be released |
Can it be transported by plane | Yes(UN3091 UN3481) | YEs |
Performance below 0ºC | Charge No, Decharge Yes | Charge and Descharge |
Overcharge
| Demaged | Only capacity lost |
Breakdown | high | Seldom |
| Weak | High |
Reliability
| Weak | High |
Use of | Dificult | Easy |
Replace new one | Dificult and high cost | Easy and Cheap |
Scrap price | No Sale Scrapt | 1USD/kg |
